PI linear positioning stage provides position feedback with 100 nm resolution

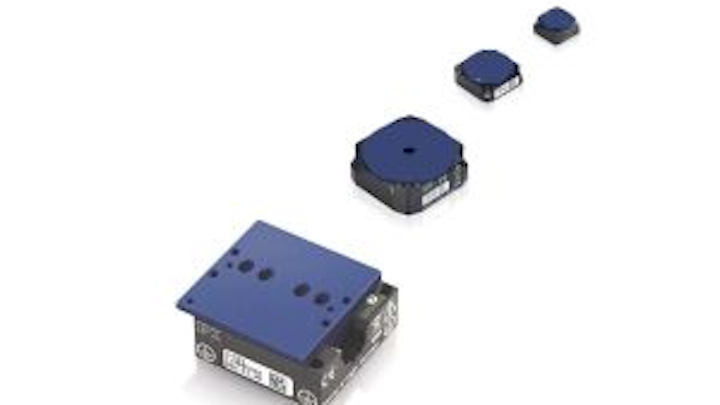

With speed up to 200 mm/s, the U-521 compact linear positioning stage is driven by a patented ultrasonic piezo electric motor.

Content Dam Lfw Online Articles 2016 06 1607lfw Pro 14 Web

With speed up to 200 mm/s, the U-521 compact linear positioning stage is driven by a patented ultrasonic piezo electric motor, which locks the platform in place at the target position and acts like a ceramic break. An integrated optical linear encoder provides position feedback with 100 nm resolution.
PI (Physik Instrumente)
Auburn, MA

www.pi-usa.us
