Highland Technology diode laser driver supports forward voltages up to 9 V

Aug. 19, 2016

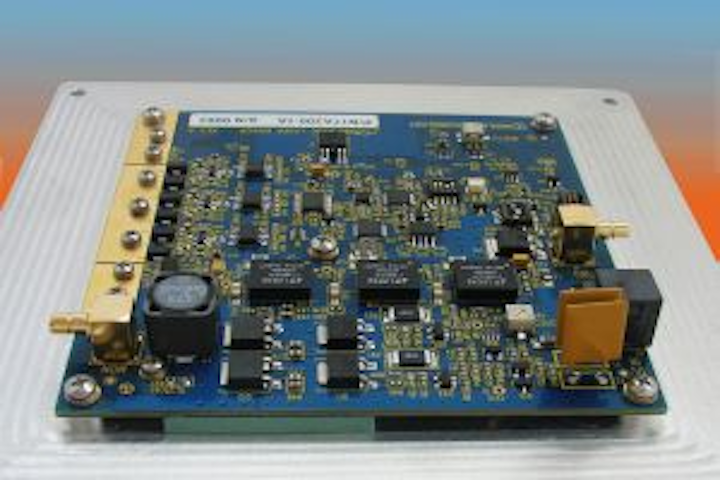

The D200 diode laser driver uses a DC-coupled trigger signal to produce 2 ns transitions.

The D200 diode laser driver uses a DC-coupled trigger signal to produce 2 ns transitions. Up to 4 A of regulated drive current supports lasers with forward voltages up to 9 V. The built-in, edge-triggered pulse generator provides pulse widths up to 1 µs. A pulse-follower mode is also provided, accommodating externally defined trigger widths up to 100% duty continuous-wave.
Highland Technology
San Francisco, CA

www.highlandtechnology.com
