One pair of eyeglasses for life: Stanford Autofocals correct vision as you age
Autofocals incorporate eye trackers and a depth camera with a sensor fusion algorithm in one system.

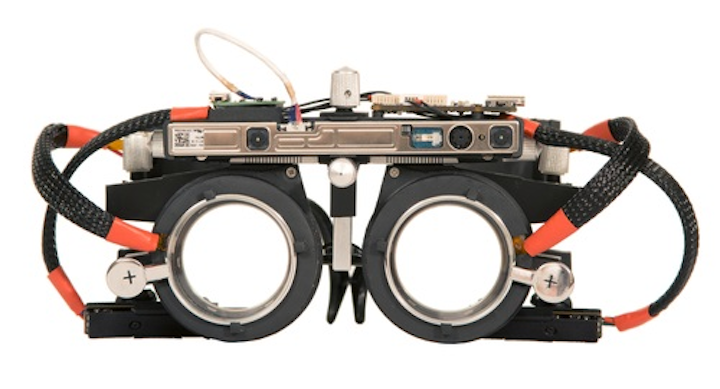

IMAGE: Autofocals correct presbyopia automatically as a person ages; though klunky in form at present, miniaturization could reduce size and weight, enabling the potential for wearers to purchase only one pair of glasses for life. (Image credit: Stanford University via SIGGRAPH2018)
A team of Stanford University (Stanford, CA) researchers has developed a system that automatically corrects presbyopia--the inability for eyes to focus clearly on nearby objects. Dubbed Autofocals, the system externally mimics the natural accommodation response of the eye by combining data from eye trackers and a depth sensor, and then automatically drives focus-tunable lenses. While there are a variety of vision correction options to address this problem, most solutions, to date, fall short of delivering users the natural vision quality of their youth.
RELATED ARTICLE: Novel diffractive intracorneal inlay improves presbyopia correction
"A lot of presbyopes have had time to get used to their corrections, through progressive lenses, monovision, etc., but they still spent the majority of their lives being able to refocus their eyes," says Nitish Padmanaban, lead author of the study and electrical engineering PhD candidate at Stanford. "We want to restore that experience."
Padmanaban and collaborators, including Robert Konrad, PhD candidate at Stanford, and Gordon Wetzstein, assistant professor of electrical engineering and of computer science at Stanford, will demonstrate Autofocals at SIGGRAPH 2018, held 12-16 August in Vancouver, BC, Canada. The annual conference and exhibition showcases the world's leading professionals, academics, and creative minds at the forefront of computer graphics and interactive techniques.
Building on previous advances made in the area of automated vision correction, Autofocals' focus-tunable eyewear for presbyopia correction incorporates eye trackers and a depth camera with a sensor fusion algorithm designed to jointly and effectively make use of both in one complete system.
The team evaluated Autofocals on 24 users, ages 51 to 81, across a set of visual performance tasks: visual acuity (sharpness of eyesight), contrast sensitivity, and letter matching. In this introductory study, users experienced better visual acuity at nearer distances when compared to monovision and progressive lenses methods, while not sacrificing 20/20 visual acuity at any distance. Monovision is the use of one contact lens that corrects only distance vision in one eye, and another lens that corrects only near vision in the other eye. Progressive lenses are popular eyewear lenses that offer focus correction at varying strengths and distances. Preliminary results also indicated that users did not experience a sizable difference with respect to contrast sensitivity and letter matching, and the majority felt the prototype worked more effectively than their own corrective lenses.
"While the technology is still in its early stages, several of the presbyopes who've tried our system genuinely wanted to have a working version for themselves," notes Padmanaban. "Vision is such an important sense for all of us that every improvement counts for a lot in terms of quality of life."
At the SIGGRAPH demo, those who suffer from presbyopia will get started by calibrating the eye trackers on the Autofocals device, after which they should be able to simply look around and have different objects automatically pop into focus. In future work, the researchers might explore improving the eye-tracking component; specifically, digging deeper into developing a calibration-free or calibration-on-the-fly eye-tracking capability. Current user experience now entails having to calibrate the eye trackers each time the device is worn or when they slip off the wearer's face, for example. Other improvements could be made to the device itself, with respect to design aesthetics and practical use.
"One could imagine that as this technology improves," adds Padmanaban, "you could have a single pair of glasses for your entire life."
SOURCE: ScienceDaily; https://www.sciencedaily.com/releases/2018/06/180612105704.htm and SIGGRAPH2018 presentation overview; https://s2018.siggraph.org/presentation/?sess=sess179&id=gensub_301#038;id=gensub_301
