Optics

Metasurface camera lens to link between quantum computers and fiber-optic networks

Sept. 13, 2018

Fabricated via CMOS-compatible processes, the lens allows reconstruction of one- and two-photon states.

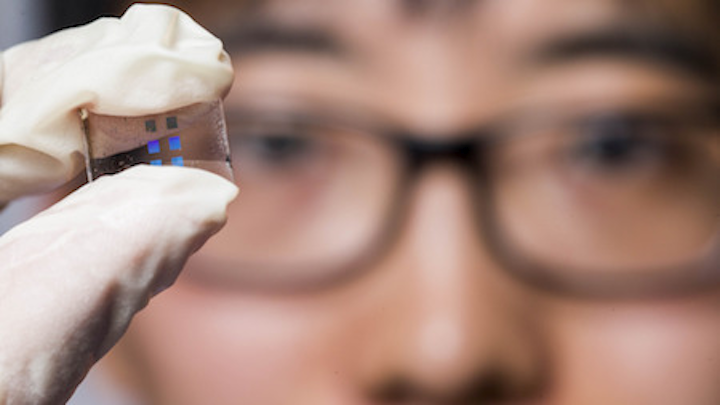

Kai Wang holds a sample containing multiple metasurface camera lenses.

An international team led by researchers at Australian National University (ANU; Canberra, Australia) has invented a small camera lens based on optical metasurfaces, aimed at facilitating links between quantum computers and fiber-optic networks.¹ Quantum computers promise a new era in ultrasecure networks, artificial intelligence, and therapeutic drugs, and will be able to solve certain problems much faster than today's classical computers.

The lens is made of a silicon film with millions of resonant nanostructures that in sum form a metasurface less than a micrometer thick. The metasurface camera lens is highly transparent, thereby enabling efficient transmission and detection of information encoded in quantum light, says ANU associate professor Andrey Sukhorukov.

Reconstruction of photon states

The lens was used to image multiple projections of polarization-encoded quantum states, including their amplitude, phase, coherence, and entanglement. Polarization-insensitive click detectors placed after the metasurface allowed reconstruction of one- and two-photon states; future experiments could reconstruct higher photon numbers.

Kai Wang, a PhD scholar at the Nonlinear Physics Centre who worked on all aspects of the project, said one challenge was making portable quantum technologies. "Our device offers a compact, integrated, and stable solution for manipulating quantum light," says Kai. "It is fabricated with a similar kind of manufacturing technique used by Intel and NVIDIA for computer chips." (In other words, the fabrication process is CMOS-compatible.)

The research was conducted at the Nonlinear Physics Centre laboratories, where staff and postgraduate scholars developed and trialled the metasurface camera lens in collaboration with researchers at the Oak Ridge National Laboratory in the United States and the National Central University in Taiwan.

Source: http://www.anu.edu.au/news/all-news/tiny-camera-lens-may-help-link-quantum-computers-to-network

REFERENCE:

1. Kai Wang et al., Science (2018); doi: 10.1126/science.aat8196.
