5-Mpixel lens from Schneider Optics features apochromatic correction

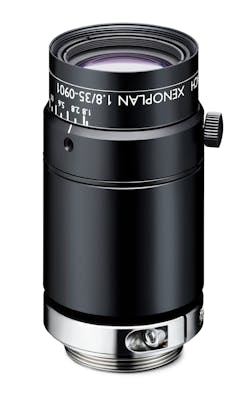

The APO-Xenoplan is a 1.8/35 mm lens for 2/3-in., 5-Mpixel CMOS or CCD sensors. With apochromatic correction and broadband coating, it covers a wide spectral range for luminescence applications at 1200 nm. It can accommodate pixels of 3.45 μm or less and has stable screws to lock focus and iris settings.
Schneider Optics
Van Nuys, CA
www.schneideroptics.com
-----
PRESS RELEASE
Schneider Announces New 5 Megapixel Lenses
Renowned optics manufacturer, Schneider-Kreuznach, introduces the new 5 megapixel APO-Xenoplan 1.8/35mm lens for 2/3” CMOS/CCD sensors. With its apochromatic correction and broadband coating, this lens covers a wide spectral range--ideal for luminescence applications at 1200nm.
The new lens is optimized for high-resolution applications using 5 megapixel CCD and CMOS cameras, so small pixel sizes of 3.45µ or less are easy to accommodate. Even at this range images are distinguished by their excellent contrast and sharpness.
The APO-Xenoplan 1.8/35mm, the latest in a series of versatile industry compliant lenses, is an excellent choice for pure measurement engineering, machine vision applications and medical technology. Designed for maximum endurance, its robust construction, equipped with stable screws to lock focus and iris settings, guarantee long-term stability for continuous operation.
For more information on the 5 megapixel APO-Xenoplan 1.8/35mm, contact Schneider Optics, 7701 Haskell Avenue, Van Nuys, CA 91406; tel: 818-766-3715; or visit http://www.schneideroptics.com
