Materials processing lens from Qioptiq available | Laser Focus World

Content Dam Lfw Online Articles 2019 04 F Theta 160

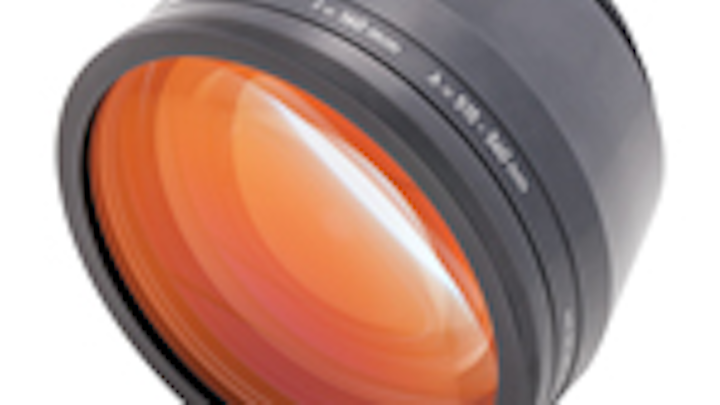

The F-Theta-Ronar lens has a focal length of 160 mm at 515 to 540 nm or 163 mm at 1030 to 1080 nm. It is designed for laser materials processing applications including 3D printing, welding, and cutting, as well as applications that require high precision and small spot size.

Qioptiq

Waltham, MA

qioptiq.com
