Optics

ESCATEC TIR lens for high-brightness LEDs is available as small as 4 mm

Feb. 15, 2016

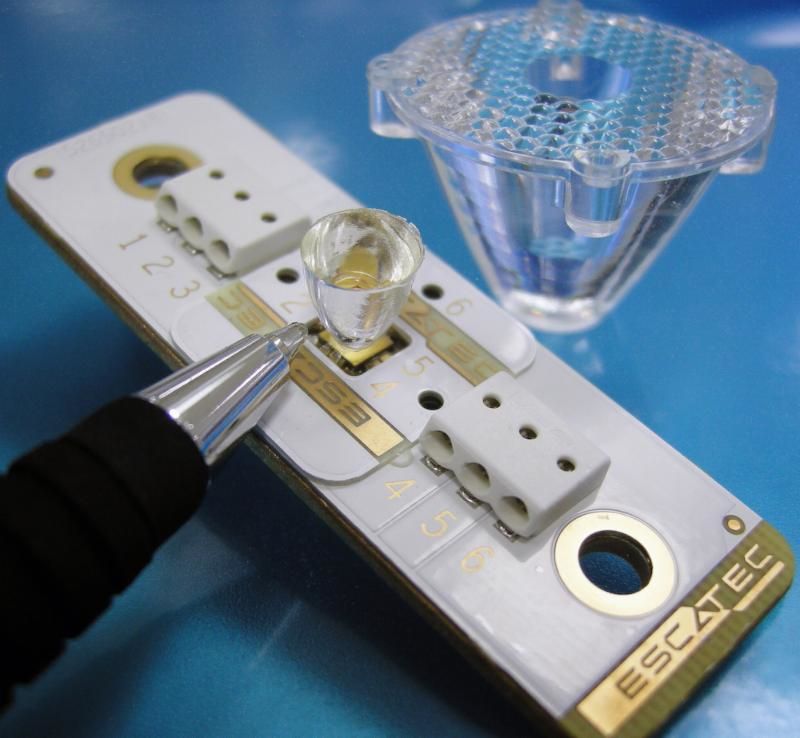

A miniaturized total internal reflection (TIR) lens for high-brightness LEDs provides an optical efficiency of up to 95%.

A miniaturized total internal reflection (TIR) lens for high-brightness LEDs provides an optical efficiency of up to 95%. Made from PMMA, silicone, or glass, the lenses are designed to achieve a high level of optical coupling, and offer a diameter as small as 4 mm and a height of 4.5 mm.
ESCATEC
Heerbrugg, Switzerland
www.escatec.com
