IMAGING OPTICS: Precision molding provides compact consumer optics

Spherical aberration and distortion in lenses for optical devices, such as cameras, is a long-standing problem that has often been addressed through the use of multiple lenses or lens arrays (see “What is spherical aberration?” p.

Th 0707lfw 04f1

Aspheric-lens arrays made possible by precision molding enable cost-effective high-volume manufacturing of optics in smaller, lighter packages for digital photography and industrial applications.


Spherical aberration and distortion in lenses for optical devices, such as cameras, is a long-standing problem that has often been addressed through the use of multiple lenses or lens arrays (see “What is spherical aberration?” p. 118). As digital imaging devices have gotten smaller over the past few decades, however, the weight and size of spherical-lens arrays have become an issue. As the demand for digital cameras and camera phones continues to grow, it becomes increasingly important to fabricate smaller and lighter lens arrays.

Aspheric-lens arrays require fewer elements than spherical-lens arrays to provide high-quality images. Unfortunately, the traditional aspheric production method involves polishing spherical lenses down to aspheric dimensions, which does not lend itself to economical mass production. In the 1980s, however, manufacturers began to use a new process to mass-produce aspheric lenses: high-precision optical-glass molding (see Fig. 1).

Th 0707lfw 04f1

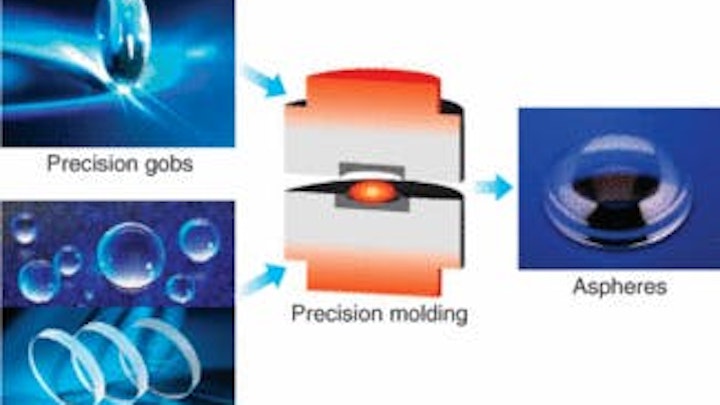

FIGURE 1. Precision molding involves heating the glass preform in the mold, pressing to the desired shape, and cooling.
Click here to enlarge image

Precision molding makes large-scale production of aspheric lenses economically viable, bringing high optical performance to the smaller, lighter packages increasingly demanded in digital photography and even for industrial optical applications. Economical mass production of aspheric lenses is particularly important in the burgeoning camera-phone market, which will account for 90% of the approximately two billion phones by 2011. Aspheric lenses offer better images, increasing the sensor pixel count without being constrained by image noise and the need for larger lenses.

Precision molding is used to manufacture fast-axis collimator microlenses, cylindrical lenses with an aspheric surface of high-refraction low-Tg glasses. They are found in high-power diode lasers used in marking, printing, drilling, hardening, pumping, welding, and cutting in industries ranging from automotive, machine tooling, and medical instruments and equipment. Precision molding is increasing production of diffractive optical elements for laser optics, sensor optics, and lighting applications. Diffractive optical elements are used to combine several optical functions needed for the miniaturization of optics. Precision molding also forms focusing optics for head-up displays, digital projectors, LED collimators, telescopes, binoculars, and various scientific research instruments.

Precision molding starts from a polished or fire-polished preform. Such a preform can be a precision gob or any other polished preform (ball, cylinder, or disc) with a surface of very good quality. The precision and consistency of weight and quality in the fire-polished surface is such that no additional post-processing is necessary for molding into aspheric lenses. During the precision-molding process, the preform is shaped into its final aspheric geometry while conserving surface quality.

Specially developed “low-Tg glasses” enable the new production technology, because they have a maximum transformation temperature (Tg) of 550°C, which is 100°C less than the thermal stability threshold of conventional mold material, which improves the durability of the mold tools while decreasing processing time.

The optical data for a glass type are determined by the chemical composition and thermal treatment of the melt. The annealing rate in the transformation range of the glass can be used to influence the refractive index within certain limits (depending on the glass type and the allowable stress birefringence). Basically, slower annealing rates yield higher refractive indices. In practice, the following formulas for refractive index and Abbe number, respectively, have proved reliable:

Th 0707lfw 117 Eq1
Click here to enlarge image

where h0 is the original annealing rate; his the new annealing rate; m is the annealing coefficient for the refractive index, depending on the glass type; and mνd is the annealing coefficient for the Abbe number, depending on the glass type.

The annealing rate influences the refractive index and Abbe number simultaneously, and is the reason for the change of refractive index after molding. This change is called “index drop,” defined as the difference between the final refractive index and Abbe number after molding, and the initial refractive index and Abbe number reference values based on a 2 K/h annealing:

Th 0707lfw 117 Eq2
Click here to enlarge image

After the melting and casting process, the precision-molding glass is cooled down in a coarse-annealing lehr at a high annealing rate. The annealing rate depends on the dimensions. Typically, rates fall between 50 and 100 K per hour. To control the refractive index through the melting and casting process, samples are taken directly from the melt at a given frequency, enabling monitoring and control of optical glass values during production.

Index drop

Usually fine-annealing rates range from 0.5 to 2 K/h, but for pressings, annealing rates between 2 and 10 K/h are used. In normal annealing processes, the annealing rate is adjusted to achieve a specific refractive-index range, along with low stress birefringence and sometimes also a good homogeneity.

In contrast to these rather low and well-defined rates, the annealing in a precision molding process is very fast and, in most cases, individual to the process of the customer and the geometry of the glass part. In general, no additional annealing process is used to adjust the refractive index after molding because of the high risk of diminishing surface quality.

The annealing rate is not necessarily constant during the cooling process. Typical “average” annealing rates for precision molding are between 1000 K/h and 10,000 K/h (or higher). Because of the high annealing rate, the refractive index and Abbe number of N-PK51 is shifted to much lower values (see Fig. 2).

Th 0707lfw 04f2
FIGURE 2. The common slope of the two lines in this plot is characteristic of the index-drop behavior of N-PK51 during an exemplary molding process. For every N-PK51 glass melt, indicated in the diagram with red rhombs, the annealing slope is the same. The annealing rates printed along the upper line mark the optical value that will be achieved if this glass would be annealed using the displayed annealing rate. The precision-molding glass in general is coarse-annealed glass. In the diagram, for example, the large red rhomb on the upper line has a 2 K/h value within the green tolerance limits, whereas the intermediate refractive index of the actual coarse-annealed glass lies somewhere between 50 K/h and 100 K/h (beneath the red bar) on the upper annealing line. The amount of index and Abbe number drop for N-PK51 is indicated with orange arrows. Comparing upper and lower melt lines, shows that the index drop is approximately the same for all N-PK51 glasses within the initial tolerance range (using the same process). Therefore, the scattering in optical position between molded glasses also remains the same.
Click here to enlarge image

Process reproducibility enables predetermination of index drop based on initial refractive-index values and a set annealing rate. Attempting to predict a refractive-index drop based on the actual refractive-index values of the coarse-annealed glass would lead to errors due to undefined annealing conditions. Therefore, it is recommended to always use value projections based on a reference annealing rate of 2 K/h. The index drop differs between glass types because every glass has a different annealing slope (see Fig. 3).

Th 0707lfw 04f3
FIGURE 3. The change in refractive index and Abbe number of precision-molding glasses varies. The refractive-index change for an average annealing rate of 3500 K/h ranges from -0.0017 to -0.0073. The Abbe number varies from +0.20 to -0.27. P-SF67 behaves differently because its Abbe number increases with increasing annealing rate.
Click here to enlarge image

Optical glasses for precision molding

Newly developed low-Tg glasses intended for use in precision molding include P-SK57, P-LASF47, P-PK53, and P-SF67. The letter “P” indicates that these glasses are produced for precision molding and are exclusively available as polished preform or precision gob. They are lead- and arsenic-free. “P-type” glasses, in general, are coarse annealed with tighter optical specifications (referred to as “P-quality”).

The N-type optical glasses can be used for precision molding because of their low transformation temperature. These glasses are also available in “P-quality” grade as polished preforms.

The refractive-index and Abbe-number data given in datasheets represent optical values of fine-annealed glasses. The cooling rate of a precision-molding process is much higher than common fine-annealing rates. Therefore, the refractive index of any precision-molded lens will be significantly lower than the catalogue values of the glass being used.

Optical glasses for precision molding are selected based on refractive index and Abbe number at a reference annealing rate of 2 K/h; tolerances for refractive index are ±0.0005 and for the Abbe number are ±0.5%. The refractive-index and Abbe-number tolerance steps for precision-molding glass are related to a reference annealing rate to achieve a reproducible process-dependent index drop.

HELGE VOGT is New Products Manager at Schott Advanced Optics, Hattenbergstrasse 10, P.O. Box 2480, 55014 Mainz, Germany; e-mail:;

What is spherical aberration?

Th 0707lfw 04sb
Click here to enlarge image

Spherical aberration is an optical phenomenon that causes a blurring of an image when light passing through the outer edges of a lens converges at a point closer than light passing through the center. Traditional spherical lenses are plagued by this problem because of their uniform curvature. Spherical lenses have an aplanatic point, which is the area of the lens in which no spherical aberration occurs. That area is the radius of the sphere divided by the index of refraction. Light coming in from outside that area of the lens will be subject to spherical aberration. Aspherical lenses, with their specially modified complex curvature, bring light from every part of the lens to focus at the same point.
