ORGANIC EMITTERS: OLEDs enable integrated surface-plasmon-resonance sensor

Organic light-emitting diodes offer much more than displays and lighting: they are perfectly suited as integrated light sources for many sensing applications.

Th Organic 01

Organic light-emitting diodes offer much more than displays and lighting: they are perfectly suited as integrated light sources for many sensing applications.

JÖRG FRISCHEISEN, NILS A. REINKE, and WOLFGANG BRüTTING

Organic light-emitting diodes (OLEDs) have received much attention over the past several years, having been demonstrated as promising candidates for general lighting and display applications. A typical OLED structure has a total thickness of only 100 to 500 nm and consists of several organic layers (small molecules or polymers) sandwiched between two electrodes. By applying a voltage across the device, electrons and holes are injected into the device and then recombine in the emitting layer, generating photons.

OLEDs are area emitters with a broad emission spectrum that depends on the material of the emitting layer; their peak wavelength can be made to fall anywhere within a wide spectral range (see Fig. 1). Emission of white light with a very high color-rendering index is achievable by combining different OLED materials. Besides their high efficiency and color tunability, OLEDs offer the advantage that, unlike their inorganic counterparts, they do not require epitaxial film growth on crystalline substrates. They can be produced not only on glass substrates, but also on flexible substrates such as plastic or metal foils, leading to many new innovative applications.

Application of OLEDs in sensors

Because of their ease of processing and deposition on many different substrates, OLEDs are perfectly suited to use as integrated light sources in many sensing applications.1-3 Here, we present a novel surface-plasmon-resonance (SPR) sensor based on an integrated OLED light source. Surface-plasmon-resonance sensors detect changes in the refractive index of a dielectric medium that is adjacent to a thin metal film.4 Excitation of surface plasmons is usually accomplished in the regime of attenuated total reflection when p-polarized light is incident through a glass prism and onto the metallic sensing layer.5

Th Organic 01

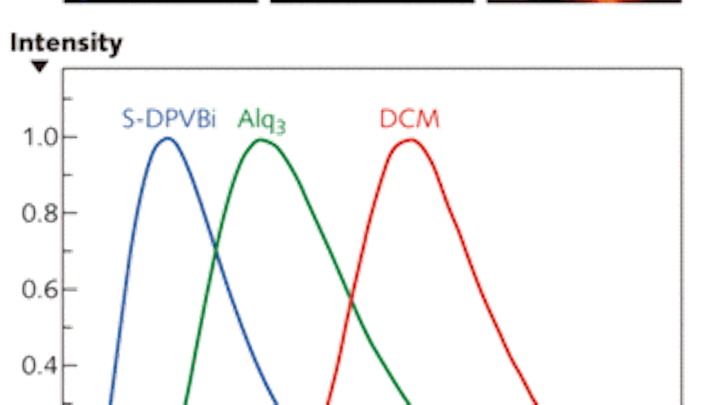

FIGURE 1. Blue, green, and red OLEDs are used as light sources in an experimental SPR sensor. The active area of the OLEDs is 10 mm long and 0.5 mm wide, so that the OLEDs can be regarded as linear light sources. (Courtesy of the University of Augsburg)
Click here to enlarge image

The metal film’s typical thickness of only a few tens of nanometers allows the evanescent field of the reflected light to excite surface plasmons at the opposite metal/dielectric interface. The SPR can be observed as a minimum of the reflected light intensity either as a function of the incidence angle or the wavelength—changes the refractive index in the medium adjacent to the metal film can be detected by shifts of the SPR position. Surface-plasmon-resonance sensors are widely used to monitor biospecific interactions or to determine concentrations of biomolecules in a solvent.

In recent years there has been growing commercial interest in SPR sensors, and especially in developing compact devices. However, the light source still remains a stumbling block in the development of small SPR sensors. Usually, SPR spectroscopy relies on bulky sources with high power consumption, such as lasers or halogen lamps. Consequently, direct assembly of an integrated light source onto a monolithic SPR sensor device is desirable for the next step in sensor miniaturization.

Integrated OLED source

Our research group at the University of Augsburg invented an SPR sensor based on a prism and an integrated OLED light source (see Fig. 2).6 The light emitted by the OLED leaves the prism after reflection at the sensing layer and passes a linear polarizing filter before it is focused by a collimating lens onto an optical fiber guiding it to a spectrometer. The basic functionality of the sensor was demonstrated by measuring the spectral and angle-dependent surface-plasmon dispersion at metal/air interfaces for sensing layers consisting of silver and gold with different thicknesses.7

Th Organic 02
FIGURE 2. The sensor takes measurements at its metal/water-interface. The OLED is attached to the left edge of a trapezoidal plexiglass prism, while the metallic sensing layer (around 50 nm thick) is located at the base of the prism so that the incidence angle of the light from the OLED on the metal film can be varied between approximately 70° and 80°.
Click here to enlarge image

To demonstrate the feasibility of our sensor for detecting changes in concentration in real time, we used the sensor to measure the dissolving process of sodium chloride (NaCl) inside a water reservoir next to a thin gold sensing layer. The refractive index of water increases with higher concentration of dissolved NaCl. Because the measurement is performed at a fixed incidence angle, an increase in refractive index shifts the SPR minimum to higher wavelengths (see Fig. 3).

For the first five minutes, the water reservoir next to the gold film was empty; thus we were measuring the reflectivity of a gold/air interface at an angle of incidence far from that for the resonance position. As a result, no minimum was observed and the reflectivity of the gold film was very high over the whole wavelength range. After adding 4.5 ml of pure water (an amount sufficient to cover the gold film completely with water), a pronounced minimum appeared. The lowest reflectivity was located at a wavelength of about 634.5 nm. After 10 minutes, 0.5 g of NaCl was added; after one more minute, stirring inside the water reservoir was started. The salt slowly dissolved and the minimum position shifted to higher wavelengths with increasing salt concentration. After 30 minutes we added 5 ml water. This dilution instantaneously reduced the concentration of NaCl and the minimum position moved back to lower wavelengths.

The refractive index of water and the concentration of dissolved sodium chloride (cNaCl, in wt.%) can be deduced from the spectral position of the minimum. The increase of refractive index with NaCl concentration is well-described by the following equation:

n = 0.00177cNaCl + 1.3329

Th Organic 03
FIGURE 3. Wavelength- and time-dependent reflectivity at the sensor’s gold/water interface were measured at an incidence angle of approximately 76° (left). The refractive index of water and the concentration of salt were extracted from the spectral position of the minimum (right). (Courtesy of the University of Augsburg)
Click here to enlarge image

The maximum measured NaCl concentration was 10.8 wt.% and dropped to 5.5 wt.% after the dilution (see Fig. 3, right). The theoretical concentration derived from the amount of inserted water and salt was 10 wt.% before and 5 wt.% after the dilution, respectively. The difference between the measurement and the expected value possibly resulted from the evaporation of water during stirring. This could also explain the slow increase over time after the dilution. In our setup, the sensor resolution was approximately 1 nm and the detection limit for the concentration of NaCl was about 0.3 wt.%.

This experiment clearly demonstrates that the sensor is capable of monitoring the concentration of dissolved NaCl in water in real time; thus, the sensor also has the potential to measure concentrations of other materials or biomolecules within a solvent and can be used for the analysis of protein interactions or adsorption processes. For such measurements, the detection limit could be greatly increased by using a “functionalized” gold surface (one with active organic molecules attached). In addition to measuring the dissolving process of NaCl, the sensor was successfully used to monitor temperature changes inside a water reservoir.8

Benefits of OLED-based sensors

The resolution of our prototype sensor can be further increased by reducing the signal-to-noise ratio, for instance by operating the OLED at a higher brightness. Because the OLED has a spectrally extended emission, it is not possible to achieve the same resolution and detection limit as a device with a laser light source. However, we want to emphasize that in contrast to SPR devices based on a laser, our sensor utilizes a fully integrated light source. Thus, there is no necessity to couple light from external bulky sources into the device, which makes the sensor particularly interesting for miniaturization and for low-cost applications. An additional benefit of using an OLED is that the active area can easily be adjusted to any shape required for a specific application. Furthermore, a white OLED would allow the sensor to cover a larger spectral range, making it possible to use the sensor in a wide range of applications.

We anticipate that our SPR configuration can be monolithically integrated on one common substrate, thus making it unnecessary to use a prism. By using an organic photodetector rather than a spectrometer, it should be possible to produce an all-organic, disposable SPR sensor that has a tremendous potential for miniaturization.
