Novel transparent solar cells show promise for power-generating windows

Sept. 16, 2021
The transparency-friendly solar cell pairs high efficiencies with 30-year estimated lifetimes.

Researchers at the University of Michigan (Ann Arbor, MI) and collaborators have designed a new transparency-friendly solar cell that couples high efficiencies with 30-year estimated lifetimes. The work may pave the way for windows that also provide solar power.

While silicon is the gold standard for solar panel efficiency, it has the limitation of not being transparentrecognizing this, researchers have been exploring organic (carbon-based) materials. The challenge for the research team, led by Stephen Forrest, the Peter A. Franken Distinguished University Professor of Electrical Engineering at the University of Michigan, was how to prevent very efficient organic light-converting materials from degrading quickly during use.

The strength and the weakness of these materials lie in the molecules that transfer the photogenerated electrons to the electrodes, the entrance points to the circuit that either uses or stores the solar power. These materials are known generally as nonfullerene acceptors to set them apart from the more robust but less efficient fullerene acceptors made of nanoscale carbon mesh. Solar cells made with nonfullerene acceptors that incorporate sulfur can achieve silicon-rivaling efficiencies of 18%, but they do not last as long.

The research team, including researchers at North Carolina State University (Raleigh, NC) and Tianjin University and Zhejiang University (both in China), set out to change that. In their experiments, they showed that without protecting the sunlight-converting material, the efficiency fell to less than 40% of its initial value within 12 weeks under the equivalent of 1 suns illumination.

Nonfullerene acceptors cause very high efficiency, but contain weak bonds that easily dissociate under high-energy photons, especially the UV [ultraviolet] photons common in sunlight, says Yongxi Li, a University of Michigan assistant research scientist in electrical engineering and computer science and first author of the research teams paper in Nature Communications.

By studying the nature of the degradation in those unprotected solar cells, the team recognized that they only needed shoring up in a few places. First, theyd need to block out that UV light, so they added a layer of zinc oxide—a common sunscreen ingredient—on the sun-facing side of the glass.

A thinner zinc oxide layer next to the light absorbing region helps conduct the solar-generated electrons to the electrode. Unfortunately, it also breaks down the fragile light absorber, so the team added a layer of a carbon-based material called IC-SAM as a buffer.

In addition, the electrode that draws positively-charged holes—essentially spaces vacated by electrons—into the circuit can also react with the light absorber. To protect that flank, they added another buffer layer, this one a fullerene shaped like a soccer ball.

The team then tested their new defenses under different intensities of simulated sunlight, from the typical 1 sun up to the light of 27 suns, and temperatures up to 150°F. By studying how the performance degraded under these conditions, the team extrapolated that the solar cells would still be running at 80% efficiency after 30 years.

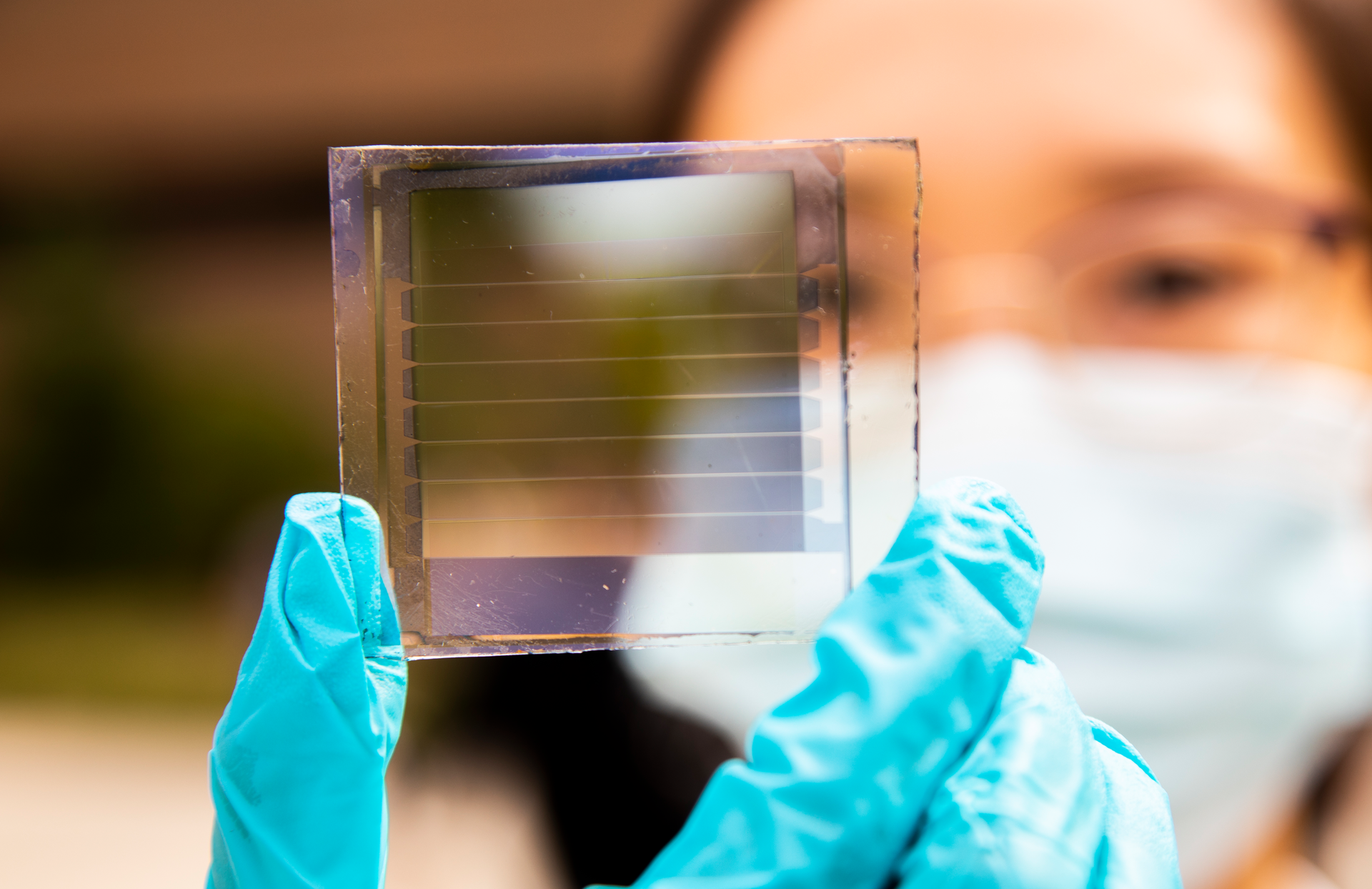

Forrests team has already increased the transparency of the module to 40%, and they believe they can approach 60% transparency.

Theyre also working on bumping up the efficiency from the 10% achieved in the reported semitransparent modules, closer to the 15% believed to be possible at high transparency. Because the materials can be prepared as liquids, the manufacturing costs are expected to be relatively low.

Source: Michigan Engineering press release
