The Smart Force SFD2C series LED driver features a dual output that provides a total maximum current of 1200 to 600 mA per side to power LED backlights used in LCDs up to 24 in. diagonal. The SFD2C can power up to four strings of HB LEDs per side with a maximum current of 150 mA per string. Features include a wide input voltage design (10 to 20 V), 60 V maximum output voltage, and 25 W of power per side.
Endicott Research Group (ERG)
Endicott, NY
[email protected]
-----
PRESS RELEASE
NEW HIGH-POWER LED DRIVER FROM ERG PROVIDES EFFICIENT SOLUTION FOR POWERING MULTIPLE STRINGS OF HIGH BRIGHTNESS LEDs FOR LCD BACKLIGHTING
Endicott, NY, May 3, 2010 – LCD backlight power specialist Endicott Research Group (ERG) has introduced a new LED driver that can simultaneously and efficiently power up to 8 strings of high brightness LEDs (HBLEDs).

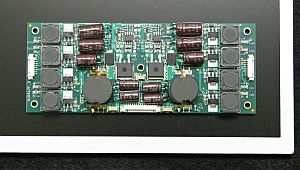

The new Smart Force™ SFD2C Series is a full-function LED driver board that features a dual output that provides a total maximum current of 1200 mA -- 600 mA per side -- for high efficiency power to LED backlights used in LCDs up to 24” diagonal.
Ideal for LED backlights utilizing larger HBLEDs, the SFD2C can power up to 4 strings of HBLEDs per side with a maximum current of 150 mA per string. It features a wide input voltage design (10-20V), 60V maximum output voltage, and provides a total 50W of power (25W per side).
The SFD2C offers onboard and external PWM dimming, with dimming ratios up to 5000:1 achievable, along with separate brightness and enable controls. It measures 2.20” x 5.61” (55.9 x 142.5 mm), and is less than 15 mm high.
Available as standard product from ERG, the SFD2C can be used with OEM LED panels as well as with ERG’s new series of multiple-string HBLED rails which provide thermal management superior to any other technology on the market. It is designed, manufactured, and supported in the USA.
Pricing for the SFD2C is approx. $50.00 in production quantities. Delivery is typically 4-6 weeks A.R.O.
For more information, visit www.ergpower.com, or contact Endicott Research Group (ERG), Inc., 2601 Wayne St., Endicott, NY 13760, USA. Tel: 607-754-9187; (toll-free: 800-215-5866); Fax: 607-754-9255; E-mail: [email protected].
Posted by Lee Mather
