Silicon-photonics-based laser Doppler vibrometry diagnoses cardiovascular disease

CARDIS project partners successfully demonstrated a medical device based on silicon photonics for cardiovascular screening.

Jan 17th, 2019

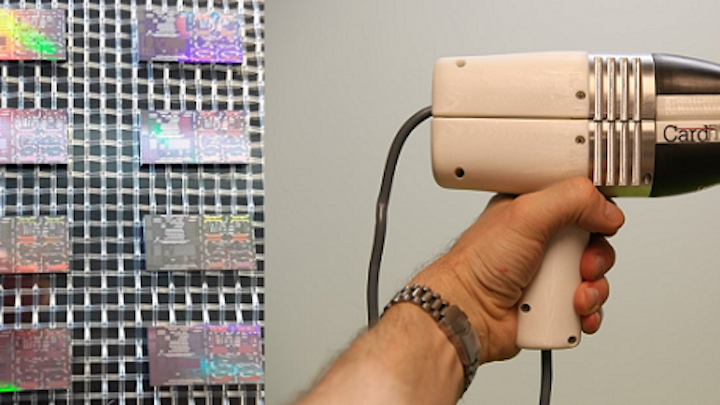

Silicon-photonics-based chips (left) have been integrated into a medical device (right) to perform laser Doppler vibrometry (LDV) on a patient's skin to deduce metrics for arterial stiffness and to diagnose cardiovascular diseases. (Image credit: Imec)
Silicon-photonics-based chips (left) have been integrated into a medical device (right) to perform laser Doppler vibrometry (LDV) on a patient's skin to deduce metrics for arterial stiffness and to diagnose cardiovascular diseases. (Image credit: Imec)

IMAGE: Silicon-photonics-based chips (left) have been integrated into a medical device (right) to perform laser Doppler vibrometry (LDV) on a patient's skin to deduce metrics for arterial stiffness and to diagnose cardiovascular diseases. (Image credit: Imec)

Nanoelectronics research and innovation hub Imec (Leuven, Belgium) and Ghent University (Ghent, Belgium) together with Medtronic and other CARDIS (http://www.cardis-h2020.eu/) project partners have successfully demonstrated a medical device based on silicon photonics for the screening of arterial stiffness and for the diagnosis of cardiovascular diseases such as arterial stenosis and heart failure. A clinical feasibility study with 100 patients has been successfully completed by INSERM at the Georges Pompidou European Hospital in Paris, France.

Cardiovascular disease (CVD) is among the leading causes of death globally. Early identification of individuals at risk allows for early intervention to halt or reverse the pathological process. Assessment of arterial stiffness by measurement of aortic pulse wave velocity (aPWV) is included in the latest guidelines for CVD risk prediction and it is a key marker for hypertension. However, no tools are available today to easily screen patients for arterial stiffness at a GP's office and consequently, many individuals remain undiagnosed.

In the Horizon 2020 project CARDIS, imec, Medtronic, and 7 other partners have developed a mobile, low-cost, point-of-care screening device for CVD. The device aims for measurement in a fast, reproducible and reliable way with minimal physical contact with the patient and minimal skills from the operator. The operating principle of the device is laser Doppler vibrometry (LDV), in which a very low-power laser is directed towards the skin overlying an artery. The skin's vibration amplitude and frequency, resulting from the heart beat, are extracted from the Doppler shift of the reflected beam. The device includes two rows of six beams, thereby scanning multiple points on the skin above the artery in parallel.

At the heart of the system is a silicon photonics chip containing the optical functionality of the multi-beam LDV device. The CARDIS chip was designed by the Photonics Research Group, an imec laboratory at Ghent University, and prototyped through imec's silicon photonics technology platform iSiPP50G, and has been implemented using advanced optical packaging approaches developed at the Tyndall National Institute in Ireland. The system has then been integrated into a handheld device and validated for human use by Medtronic.

A clinical feasibility study at the Georges Pompidou European Hospital in Paris has collected a substantial clinical dataset, both from healthy subjects as well as from patients with cardiovascular conditions. The quality of the device readings was found to be very good and adequate measurement results could be obtained in all subjects. Also, the measurement data and variability within sessions were in line with data and variability acquired by reference techniques. A full dataset is now available and in-depth analysis will be performed both at INSERM and at the biomedical engineering department of Ghent University with the support of Medtronic. Moreover, further clinical feasibility studies are planned in the Academic Hospital of Maastricht (The Netherlands).

In a next step, a small series of the device will be produced to perform a clinical feasibility study on a larger group of patients and over a longer time period. If this feasibility study demonstrates the ability of the technology to detect cardiovascular diseases at an early stage, high volume production can be initiated. One of the benefits of the silicon photonics technology is that at high volumes, the chip can be produced at low cost.

SOURCE: Imec; https://www.imec-int.com/en/articles/imec-and-cardis-partners-develop-unique-photonic-based-medical-device-for-the-screening
