Okinawa researchers fabricate simple, glass bottle-shaped microlasers
OIST researchers have developed a new technique to fabricate glass microlasers and tune them using compressed air.

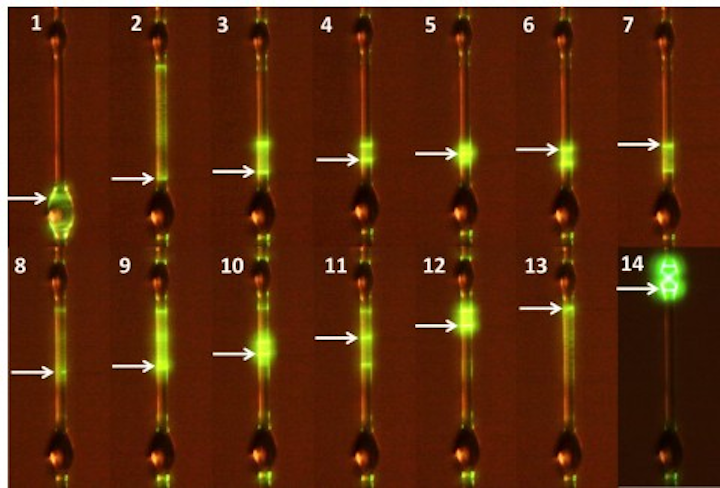

IMAGE:The Okinawa Institute of Science and Technology (OIST) has devised a new glass wetting technique to fabricate microlasers. A phosphate glass wire doped with ytterbium and erbium is melted and allowed to flow around a hollow silica capillary creating a single-wavelength microlaser. (Image credit: OIST)
Led by professor Síle Nic Chormaic, scientists from the Light-Matter Interactions Unit at the Okinawa Institute of Science and Technology Graduate University (OIST; Okinawa, Japan), have developed a new technique to fabricate glass microlasers and tune them using compressed air. Published in Scientific Reports, the new technique could pave the way for the simple serial production of glass microlasers and could be used in a wide range of applications, such as optical communications or biosensing.
Microlasers are tiny optical devices a few tens of micrometers in diameter that are able to create intense light with only one color or wavelength. OIST researchers found a new method to fabricate a special type of glass microlaser, called whispering gallery microlasers--doughnut-shaped or spherical devices produced from glass doped with rare earth elements, such as erbium or ytterbium (Er or Yb). Inside the microlasers, light is reflected over and over creating a 10-100 meter long optical path within a tiny device the size of a grain of sand.
Taking advantage of the different melting temperatures of silica and Er or Yb doped phosphate glass, OIST scientists have devised a new way to produce microlasers via glass wetting, or glass-on-glass fabrication. In this new technique, a strand of Er or Yb doped phosphate glass is melted and allowed to flow around a hollow capillary of silica. This is possible because of the different melting temperatures of silica and phosphate glass at 1500°C and 500°C, respectively. This technique produces bottle-shaped microlasers, which are 170 microns in diameter. The bottle-shape can then be modified to become a thin coating of only a few microns in diameter around the capillary.
While fabricating doped glass microlasers using traditional methods can be tedious, with each individual sphere being attached to a glass strand, this glass wetting technique allows scientists to make any number of microlasers quickly and in series.
This technique also facilitates a new way of tuning the wavelength or color of light emitted by the microlasers. The tuning is achieved by a combination of pressure and temperature. Compressed gas passed through the capillary cools the walls of the hollow structure. This cooling effect makes the diameter of the microlaser contract, which changes the laser output wavelength.
Microlasers prepared with this new technique were used to measure the air flow in microfluidic devices and have been shown to be more sensitive than commercial electronic flow sensors, as well as 10,000 times smaller.
"We wanted the ability to tune micro-scale lasers without increasing the size and the complexity of the device and keeping high quality," says Jonathan Ward, the first author of this study. "This could be a step towards the quick and easy fabrication of smaller devices for biosensing and optical communications."
