X-ray pumped laser produces 1.4 A narrow-linewidth hard x-ray emission

Nov. 13, 2015
Researchers have developed a 1.4 Å (0.14 nm) hard x-ray laser from a copper target with an inner-shell electron excitation scheme.

In 2011, Japanese researchers achieved coherent x-ray free-electron laser emission of 1.2 Å from the SPring-8 Angstrom Compact Free Electron Laser (SACLA; Hyogo, Japan), which today routinely produces < 1 Å hard x-ray pulses (photon energy on the order of 10 keV) with 1020 W/cm2 maximum focus intensity.

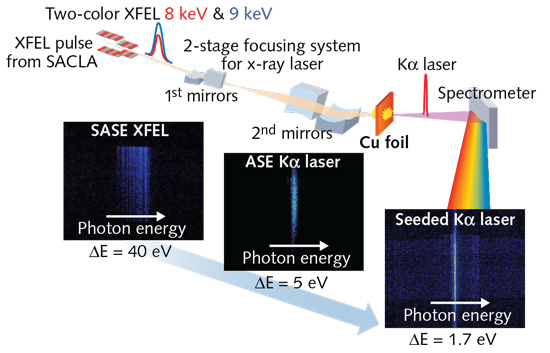

Now, in an effort to further the study of the movement of electrons within materials and, hence, gain crucial light-matter interaction information that governs nearly all physical processes, researchers at the University of Electro-Communications and the University of Tokyo (both in Tokyo, Japan), RIKEN and JASRI (Hyogo, Japan), and Osaka and Kyoto University have developed a 1.4 Å (0.14 nm) hard x-ray laser from a copper target with an inner-shell electron excitation scheme. By using a two-color pulse from the SACLA system, they successfully seeded the hard x-ray laser to maximize temporal coherence at almost ideal limits. The narrowest bandwidth obtained is 1.7 eV—smaller than the natural width defined by the lifetime of the atomic transition because of the uncertainty principle. The narrower linewidth denotes the effective decay time of 1 s in artificially suppressed vacancy ions. In this SACLA-seeded laser, strong induced emission occurs and the branching ratio of the relaxation process of the K-shell vacancy (Kα1, Kα2, and Auger process) is changed from its nominally constant values. This allows pure Kα1 or Kα2 laser emission with high efficiency. Reference: H. Yoneda et al., Nature, 524, 446–449 (Aug. 27, 2015).
