Graphene-modelocked VECSELs show broad tuning range

Feb. 27, 2014
A team of researchers report a 21 nm tuning range from a GSAM-modelocked VECSEL—a value that exceeds the capabilities of recently reported SESAM-modelocked VECSELs.

Near-infrared vertical external-cavity surface-emitting lasers (VECSELs) are typically modelocked with semiconductor saturable absorber mirrors (SESAMs). An alternative method for modelocking, however, uses a graphene saturable absorber mirror (GSAM). Researchers from ETH Zurich (Zurich, Switzerland), the University of Cambridge (Cambridge, England), and Sungkyunkwan University (Suwon, South Korea) report a 21 nm tuning range from a GSAM-modelocked VECSEL—a value that exceeds the capabilities of recently reported SESAM-modelocked VECSELs.

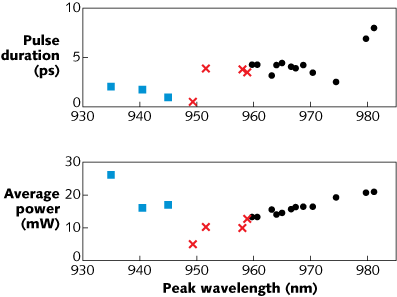

The GSAM is prepared by CVD growth of a single-layer graphene sheet. The 100 mm2 sheet is then transferred to a distributed Bragg reflector (DBR) with high reflectivity from 930 to 1010 nm. VECSEL gain chips with center wavelengths at 940 nm (blue squares), 950 nm (red x symbols), and 970 nm (black circles) were then arranged in a folded-mirror cavity with a high-reflectivity mirror, output coupler mirror, GSAM as end mirror, and an intracavity etalon used as the tuning mechanism. The 970 nm gain structure exhibits the broadest tuning range of 21 nm, with 13–21 mW average output power. Stable modelocking is observed for all the structures at a 1.5 GHz repetition rate, with pulses as short as 473 fs (without the etalon). Using the three different VECSEL chips, the tuning range can be extended to 46 nm. Contact Christian A. Zaugg at [email protected].
