Diode-laser wavelengths shift deeper into the infrared

Long-wavelength diode lasers operating at near-infrared wavelengths carry telecommunication signals, but much longer-wavelength lasers are now probing the mid-infrared region and monitoring air pollution.

Eric J. Lerner, Contributing Editor

Diode lasers are divided into two broad categories depending on the wavelengths they generate. Short-wavelength diode lasers produce light at visible and very-near-infrared wavelengths (below 1 µm), while long-wavelength diode lasers emit from 1 µm to well into the mid-infrared range--up to 12 µm in some experimental models. Within the long-wavelength category, fiberoptic-communications lasers operate in the near-infrared low-attenuation windows of silica glass fibers at 1.3 and 1.51 µm (see photo). The broad range of mid-infrared diode lasers is mainly used for detecting gases, including, in particular, air pollutants, through their infrared (IR) absorption bands. The rapid expansion of diode lasers into ever longer-wavelength regions is a major area of laser research today.

Communications lasers--faster and faster

In the design of communications lasers, speed of response is of the essence--a laser must be able to respond rapidly to an imposed modulating signal that may be at a frequency of tens of gigahertz. The key to achieving such rapid response is the reduction of parasitic capacitance. There are a number of structures that accomplish this goal and in addition are relatively easy to manufacture.

The etched-mesa buried-heterostructure laser is made by etching back into the n-doped layer on either side of a 2-3-µm-wide region that forms the active region and then regrowing n- and p-doped layers onto the etched-away region (see Fig. 1). The active region is thus optically confined on all sides by regions of different refractive index. An alternative design is the double-channel buried-heterostructure laser. Here two channels are etched into the n-doped layer and n- and p-type layers are regrown, leaving the active layer confined between the two channels. Typically, indium gallium arsenic phosphide (InGaAsP) grown on an indium phosphide (InP) substrate is the basic material for such structures.

Long-term reliability is equally important in communications lasers. Certain key failure modes limit laser performance and lifetime. First, catastrophic failure due to melting can occur with power densities at the output facet above 1 mW/cm2, which corresponds to powers of a few tens of milliwatts for facets with a cross section of a few square microns. Facet coatings such as alumina can increase these levels significantly.

Second, dark-line defects can be generated by the accumulation of a network of dislocations. Such defects are regions of strong nonradiative recombination of electrons and holes and may start from a single dislocation. Because they sap the efficiency of the laser, they lead to rapid decrease in output power and device failure. Their elimination depends on the use of dislocation-free substrates (those with fewer than ten dislocations per square millimeter). Dislocation can also be generated during soldering of contact wires, so high temperatures and mechanical pressures must be minimized. In addition, lasers are screened through a burn-in period that eliminates devices with early dark-line defects.

Even if dark-line defects are eliminated, there is a gradual decrease in laser power and an increase in threshold current with time as nonradiative recombination releases energy that forms dislocations, leading to more nonradiative recombination. However, typical diode lasers have mean lifetimes on the order of 100 years.

Narrow linewidths needed

While any diode laser produces a narrow range of wavelengths and quantum-well lasers, described below, produce even narrower lines with widths of a few nanometers (or a few tenths of a percent of the carrier wavelength), even smaller linewidths, around 0.05 nm, are required for fiberoptic communications to minimize dispersion. In addition, the spread of frequencies in the carrier should not exceed 10% of the bit rates, so even for gigabit rates, this requires a line width of 100 MHz, or about 0.001 nm.

To achieve these very narrow line widths, some form of grating structure is im posed on the laser cavity to make a single frequency favored over others. In the distributed-feedback (DFB) laser, a grating structure placed alongside the active layer provides diffracted feedback only for the wavelength specified by the grating spacing (see Fig. 2). A distributed-Bragg-reflector (DBR) laser uses the same principle but places the grating beyond the active layer, connecting them with an optical pathway. Another alternative has the grating as the back reflector to the laser, which allows tuning by tilting the grating. The laser may be separated from the grating by a long external cavity.

Probing the mid-IR range

The applications for diode lasers in the mid-IR are far more limited than the huge telecommunications market but are nonetheless important. In this spectral range, lasers can be used to detect gases either for environmental monitoring or for industrial-process control.

The problem in obtaining such long wavelengths is that few suitable materials have bandgaps small enough to generate mid-IR radiation. One of the most promising approaches to overcoming this problem is using periodically poled lithium niobate (LiNbO3) to increase the wavelength of light from optical diode lasers. This technique is the inverse of the familiar frequency-doubling crystals used to produce short-wavelength laser light.

In one scheme, two tunable lasers are fed into a LiNbO3 crystal, one in the range about 0.98 µm, the other around 0.78 µm. In the crystal, the two waves interact nonlinearly to produce the difference frequency, with wavelengths in the range between 3.6 and 4.3 µm at power levels of 7 µW. In these nonlinear crystals, for reasonable efficiencies, the different wavelengths must remain phase-matched, which is not possible in a material where the refractive index changes with wavelength, because the different wavelengths travel at different velocities. In periodically poled lithium niobate (PPLN), this problem is overcome by periodically reversing the ferroelectric domain structure and thus the direction of spontaneous polarization. If this is done with a period equal to the coherence length of the nonlinear infraction, phase-matching is maintained.

To generate the needed poling spacing, a LiNbO3 crystal is photolithographically patterned with a metal electrode structure having the needed spacing. Regions between the electrodes are insulated and a high-voltage pulse is applied, yielding fields in excess of 210 kV/cm (see Fig. 3). Pulsewidth and current can be varied to give the desired domain shape.

Quantum wells and cascades

There are other ways of modifying the wavelength of light to produce mid-IR radiation, especially in the range beyond 5 µm where absorption cuts off the use of LiNbO3. The most important is the quantum-well structure, which also improves the general operation of a diode laser. When a layer of material in a semiconductor is made sufficiently thin, less than 50 nm, quantum effects become important because the location of the electrons is so restricted in one dimension. The result is that the conduction band and valence band split into sub-bands, and the probability of a transition across the bandgap also changes.

These effects are dependent on the thickness of the layer, so changing this thickness can fine-tune the wavelength of light emitted. In addition, a so-called quantum well requires a lower threshold current and has higher gain and a more coherent light output. Although individual quantum wells with small emitting volumes have low power outputs, such layers can be stacked, alternating with inactive layers, producing multiple quantum wells with power comparable to other diode-lasers arrays, but with the advantages of quantum wells (see Fig. 4).

An important modification of the quantum-well structure is the quantum cascade. In this structure, the transitions are not between the valence and conduction bands but between two conduction bands. The close spacing of these bands allows such lasers to emit light in the mid- to far-IR range. A number of research groups are working to push quantum-cascade wavelengths to longer wavelengths. At Lucent Technologies--Bell Labs (Murray Hill, NJ), Jerome Faist and colleagues have achieved 60 mW of power at room temperature at 5.4 and 8 µm. The device uses alternating layers of AlInAs and GaIn with a distributed-feedback structure. More recently, the same group pushed wavelengths up to 11.2 µm with the device cooled to 200 K. There does not appear to be any inherent limit in how long a wavelength can be produced with the quantum-cascade structure. o

FURTHER READING

Jerome Faist et al., "Continuous wave Quantum Cascade Lasers," SPIE vol. 2682, p. 198 (May 1996).

G. J. Dixon, Laser Focus World 33(5), 105 (May 1997).

Click here to enlarge image

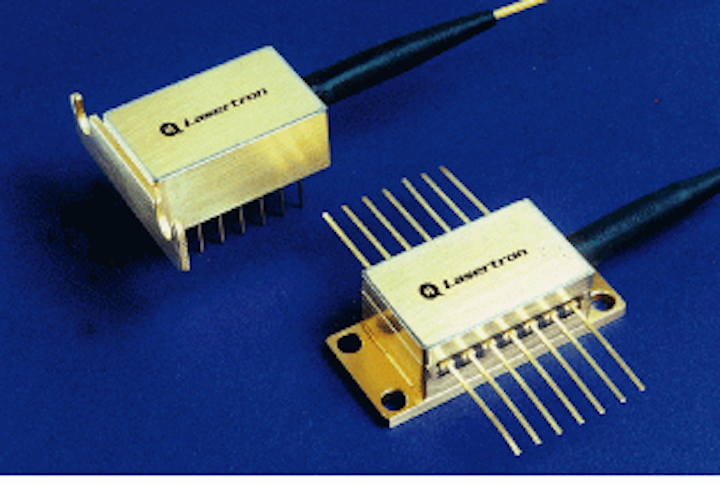

Standard dual-in-line long-wavelength diode laser (left) operates at 1310 to 1510 nm (1.3-1.51 µm). Standard butterfly DFB diode laser (right) operates at 1510 to 1550 nm (1.51-1.55 µm). Both are suitable for SONET transmission or optical supervisory channel applications.

Click here to enlarge image

FIGURE 1. Buried heterostructures reduce parasitic capacitance in high-speed diode lasers. Two common types of buried heterostructures are the etched mesa (top) and the double-channel planar (bottom) configurations.

Click here to enlarge image

FIGURE 2. Gratings can be used to reduce the linewidth of diode-laser output. Common designs include external-cavity stabilization (top), distributed feedback (DFB, middle), and distributed Bragg reflector (DBR, bottom).

Click here to enlarge image

FIGURE 3. Periodically poled lithium niobate is produced by subjecting a lithographically patterned wafer of optical-quality lithium niobate to a high-voltage pulse. A liquid electrolyte forms the contact between the metal electrodes and the wafer.

Click here to enlarge image

FIGURE 4. In multiple-quantum-well diode lasers, very thin layers of active materials (here GaInAsP) alternate with inactive layers. Quantum effects modify the bandga¥structure, allowing the production of longer-wavelength emission with narrower linewidths.
