High-power direct diode lasers have advantages for heat processing

Sept. 1, 2019
The compact size, high-efficiency, wavelength, and beam characteristics of high-power direct-diode lasers make these light sources ideal for many heat-processing applications.
1909 Ils18 20 F1


In recent years, fiber lasers and high-power direct-diode lasers (DDLs) have been increasingly used for heat processing. These laser types both have excellent features, allowing them to substitute for conventional lasers in materials processing. Enshu offers these lasers in comprehensive systems for applied technology, processing technology, and peripheral devices.

Processing lasers

As shown in TABLE 1, the energy-saving advantage of high-power DDLs is clear when compared to conventional types such as carbon dioxide (CO2) lasers and yttrium aluminum garnet (YAG) lasers. Enshu provides laser oscillation units up to 5 kW output based on Japan-made high-power DDLs.
From the beginning, Enshu’s laser processing machines have used DDL technology, mainly for welding metal and plastic. With the launch of the company’s fiber lasers, it has been possible to offer precision overlay joining by keyhole-type welding. TABLE 2 shows Enshu’s laser (unit) lineup.

Since Enshu’s founding in 2002, the company has been collaborating with Hamamatsu Photonics KK. With this background, Enshu has been developing and manufacturing laser processing machines centered on high-power direct-diode lasers. The company has made an effort to expand Japan-made DDLs in the market by proposing to each customer the practical uses of the advantages of fiber lasers and Japan-made high-power DDLs. Now, the company mainly promotes processing applications that it has developed for these lasers.

Enshu has now introduced a DDL with peripheral equipment. As seen in FIGURE 1, DDLs are very small. The company also designs and manufactures power supplies and chillers, and can deliver a complete laser unit to customers. This DDL is compact and weighs only 15 kg at 4 kW output, allowing easy mounting on conventional robots and machines. There is almost no loss in the optical system because it is a direct irradiation type.

In addition, fiber cable is not used, as the wiring around the head comes from power lines, signal lines, and a cooling water line to simplify wiring and piping work for motion drive devices. The DDL has a rectangular beam spot with a top-hat profile, which allows for heat-conduction welding, a large gap tolerance, and reduced weld spatters (FIGURE 2).

Welding applications

Welding of auto exhaust systems. Auto exhaust parts are produced by lap welding sheet metal. While through-bonding is generally used for lap welding, for exhaust systems, it is necessary to firmly bond the welded part. It is also necessary to prevent the entry of substances such as spatters in the lower area of the bottom sheet. For these reasons, a DDL having a wide bead width and the ability to do conduction welding was adopted. It can be seen in FIGURE 3 that a wide bonding width is obtained and a nonpenetrating weld produced on the lower surface portion.

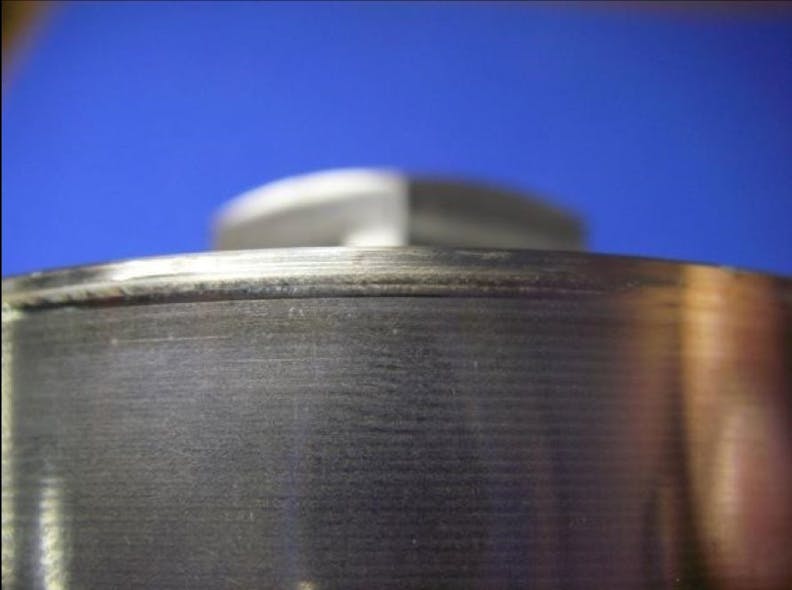

Industrial lithium ion battery welding. This battery part (FIGURE 4) is also advantageously processed using the DDL. A disc is placed on a cylindrical sheet metal part and butt-welded, but because it is a sheet metal part, there are gaps and positional deviations in the joint. The use of a high-power DDL solves this problem by allowing for a large gap tolerance and changes in aim position. User concerns with spattering on the part are reduced. With its large beam width, the DDL enables heat conduction-type welding with less spatter and a sufficient welding region for nonpenetration welding.
Aluminum foil spot welding. This example (FIGURE 5) consists of welding using the large rectangle spot feature of the DDL. In this process, a rectangular beam is focused on the upper surface of a foil-laminated part (10–20 sheets) and a flat plate to join them together. If a combination of keyhole welding with a fiber laser and a galvo mirror is used, bumping is produced in the melting portion and the molten metal scatters, causing a joining failure. In contrast, using heat conduction-type welding, it is hard for bumping to occur, as a stable molten pool is formed and the component parts successfully joined.

Hardening applications

Laser hardening. A DDL can be used to harden a surface. Here, it is not necessary to use an energy absorber because the wavelength is shorter than that of conventional CO2 lasers. Because the beam is a top hat, it is possible to apply heat evenly to the target site without using special optics.

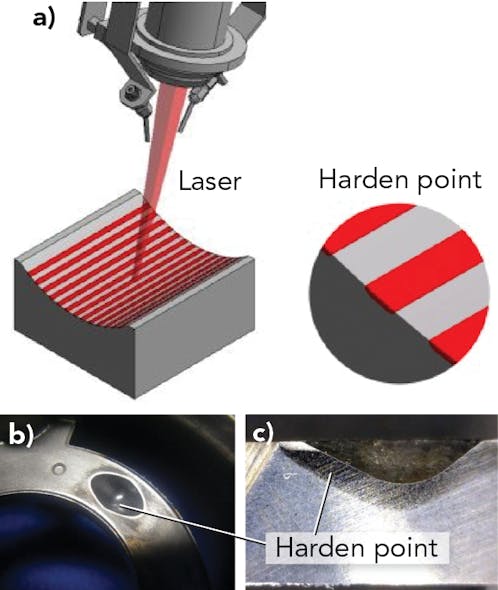

Partial hardening of machine parts. This is a case in which the wear resistance of the sliding surface of large casting parts is improved by (stripe) hardening. As seen in FIGURE 6, the hardened portion reduces wear by increasing the hardness and the nonhardened portion wears and improves the lubricity by becoming an oil reservoir. Even if the portion to be hardened has an oval shape, because of the top hat and rectangular beam shape, the part can be can hardened uniformly.

Enshu has introduced a new optical lens unit (FIGURE 7) that improves hardening quality by improving the uniformity of the beam, yielding a DDL with uniform illumination unit. The system is offered in 20 different beam sizes needed for heat treatment from 2.5 to 25 mm. The beam size can be selected according to the range. In mass production, the use of a large selection of lenses is considered unnecessary—by narrowing down the types, the initial cost is reduced and the process is simplified. Even with the current type of optical system, an improvement of 11% in hardening width and 11% in hardening depth is realized.

Characteristics of laser cladding

Because conventional cladding technology requires a large amount of heat, distortion of the base material is large and postprocessing is required due to the large amount of residual heat and the resulting dilution into the base material. In the case of laser cladding,1 the applied heat is small and the distortion of the base material is small, making postprocessing unnecessary. In addition, the dilution of alloy into the base material is small, permitting the creation of a high-quality clad layer (FIGURE 8). Also, since the joint between the cladding layer and the base material is a metallurgical bond, it has sufficient strength.

Cladding applications

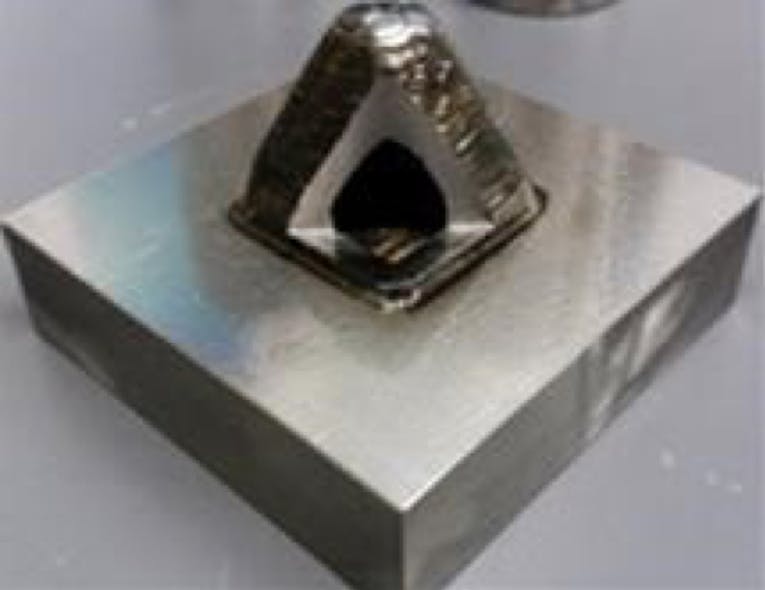

Wire supply-type cladding. A sample of DDL beam cladding is shown in FIGURE 9. In wire supply-type cladding, Enshu mainly works on mold repair and laminated cladding. The DDL is the heat conduction type, so there is less spatter, and the heat transfer is quiet and stable processing can be realized.

Powder supply-type cladding. With respect to powder supply-type cladding, Enshu mainly works on wear-resistant parts and mold repair processing. Using this cladding method, the base material for transportation-equipment parts is produced from cheap and light material, rather than select expensive material. Cladding is applied only to an area of a part necessary to satisfy the function, reducing the part cost.

The sample shown in FIGURE 10 resembles a brake disc made from the base material high-carbon steel, which is sometimes surface heat-treated. Producing the disc using low-carbon steel standard, then cladding a high-wear-resistance material onto the disc, produces an inexpensive standard material.

Powder supply-type cladding is expected to be effective in improving the construction of future transportation-equipment parts, since the process can use various materials (unlike wire cladding) and can suppress the amount of heat-affected region. Enshu has developed the necessary internally manufactured feeder system for powdered cladding.

Reviewing the DDL technology advantages

To sum up the characteristics of the DDL, the wavelength is shorter than conventional CO2 lasers, so the laser power is easily absorbed by the base material or cladding alloy and can be processed with low power laser output. In addition, the DDL allows for efficient processing without scanning a beam and the beam profile is a top hat, allowing a uniform amount of heat to be applied to the base material.


1. J. Franks, “High Efficiency Hot Wire Cladding with High Power Diode Laser System,” Industrial Laser Solutions Japan, 1-3.

NORIKAZU KUME ([email protected]) is with the New Business/IOT Promotion Office of Enshu Limited, Minami-ku, Hamamatsu, Shizuoka, Japan; www.enshu.co.jp
