Ultrafast lasers offer great promise as a unique manufacturing tool

May 9, 2017
Ultrafast lasers offer unique material processing possibilities because the laser's pulse duration is less than the target material's conduction time.

Ultrafast (also known as ultrashort-pulse) lasers offer unique material processing possibilities because the laser's pulse duration is less than the target material's conduction time. Essentially, this means that cold machining of parts is possible, with material being removed by sublimation. This vaporization machining method offers advantages that simply cannot be produced by any other processes, including near-zero heat effect; minimal burring and debris, which reduces or eliminates post-processing; high dimensional accuracy; and the ability to produce high-quality small features in metals, plastics, ceramic, and glass. However, these systems are expensive, so the laser and system choice must be carefully considered.

Shorter pulse duration drives interest

Like so many other laser technologies, the ultrafast laser came to life in a research lab. However, it was not long before the ultrafast laser's pulse duration (significantly shorter than commercially available nanosecond lasers) drove interest in its use for micromachining and material processing. The ability to process almost any material with almost no heat signature offered a unique manufacturing tool that enables product innovation and development. In some cases, it even results in cost reduction.

Ultrafast lasers are divided into two main categories. A picosecond laser emits optical pulses with a pulse duration around 10ps—just over one trillionth (10-12) of a second, or one millionth of a microsecond. A femtosecond laser emits pulses that are around 400fs—less than one trillionth of a second in duration.

It is worth noting that the term "ultrafast" does not refer to the material removal rate. In fact, quite the opposite is true, which is why these lasers excel at processing material thicknesses of <250µm. Thicker materials can be processed, but if so, one must consider cycle time more closely.

The processing differences between picosecond and femtosecond lasers can in some instances be very subtle, and in others very apparent. When used to process metals, the difference is subtle—the femtosecond laser offers zero topside burr with slightly better defined features and lower surface roughness. The femtosecond laser can also process a greater range of plastics. Picosecond lasers typically require green or ultraviolet (UV) wavelengths to process plastics effectively. Quality comparison between picosecond and femtosecond is material-dependent. When the absolute best quality is needed, femtosecond is the clear choice. However, picosecond lasers tend to machine faster, so the question becomes, "How good is good enough for the process?"

Understanding which laser works best for the application can only be determined through parts testing. As part of defining the application and system, Amada Miyachi America typically runs samples on both femtosecond and picosecond lasers and on multiple wavelengths for both lasers, as needed.

Analysis of the process quality, removal rates, and cycle time all need to be weighed carefully between the two lasers. The typical price of an ultrafast laser system is in the range of $400,000 and above. So, before embarking down that road, users should clearly understand their return on investment (ROI) so they can justify the investment in terms of cost reduction, unique processing capabilities, or—in many cases—both. The final decision on which one to select is made after an iterative process, which usually includes a number of short runs of parts.

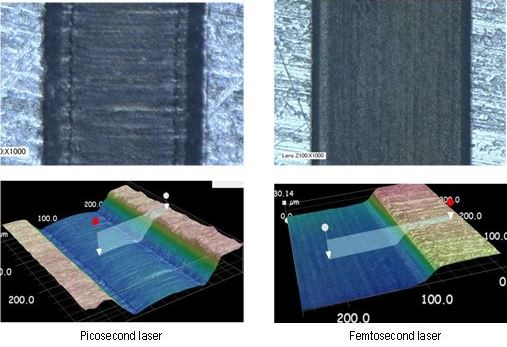

FIGURE 1 compares picosecond and femtosecond lasers machining a 100µm-wide channel in metal. Using a similar material removal method and cycle time, the femtosecond laser produces cleaner edges and a smoother base.

Ultrafast wavelength choices abound

Both picosecond and femtosecond lasers offer wavelength choices in the infrared (IR), green, and UV. Certain wavelengths work best for specific materials and/or one can also select the wavelength based on a particular feature size required. The smallest focus spot size achievable is directly related to the wavelength. Therefore, if all things are equal, a UV laser will focus to a spot size one-third the diameter of an IR laser. In this discussion, we refer to the wavelength by name (IR) rather a wavelength number (1030nm), since different laser technologies operate at slightly different wavelengths.

Each of the femtosecond and picosecond lasers can be offered with multiple wavelengths available from a single laser. This option is typically used more for research and development rather than production systems, where single-wavelength point-of-use machines are used for a specific material and process. Examples of where different wavelengths matter includes picosecond IR for glass cutting and picosecond green for medical plastics like PEBAX.

The use and argument for different wavelengths matched to different materials is less obvious for femtosecond lasers. Many people originally thought that the normal absorption dependency to wavelength would no longer apply with such a short pulse duration, and that "multiphoton absorption" would dominate. This has not proven to be the case for certain plastics—polymer stents are a good example. Not only is the processing quality and cutting speed better using femtosecond green, but the processing window is also larger using green compared to IR. When machining small or blind features on plastics down to the micron level, the green wavelength can provide a more stable process.
FIGURE 2 shows a comparison of blind drilling polyethylene terephthalate (PET) with picosecond IR (left) and picosecond UV (right). Processing time is the same—hole depth is three times better for picosecond UV, with less charring. The only reason to select a different wavelength for both picosecond and femtosecond laser processing of metals would be for feature size. From a processing perspective, there is little difference between IR, green, and UV. TABLE 1 provides a general overview of the best wavelength choice for particular materials.

Integration of ultrafast lasers into manufacturing

The key feature of the ultrafast laser is its ability to process material to high dimensional accuracy. Therefore, the first system requirement is to support that level of precision. However, all the best hardware in the world will not provide a stable system if the environment in which the system is placed is not stable—specifically for temperature variance. In the world of microns of precision, temperature variance beyond a few degrees will cause issues not only to fixtures and stages, but also to the laser's pointing stability. For example, each Celsius degree of temperature change would change a 300mm length of aluminum by 7µm. Therefore, the machines need to be housed in a well-controlled and air-conditioned space.

An ultrafast laser system is composed of several elements: the laser, an optical path to deliver the laser to the focusing optics, focusing optics, motion, vision, debris control, and tooling. Each must be carefully considered as part of the optimal system solution.

The laser is guided to the focusing optics using mirrors and a variable beam expander, which provides flexibility in changing the beam diameter entering the focus optics and therefore the size of the focus spot. There are two reasons this is needed. First, each laser's output is a little different, so unless the process was qualified with the exact same laser to be used with the system, the variable beam expander can be used to tune the final focus spot size. Secondly, mostly with regard to flexible setup machines, the variable beam expander can change the focus spot size for different applications.

Knowing and maintaining the position of focus on the part is very important because in many cases, the laser's depth of focus or z height tolerance can be <250µm. If tooling cannot maintain this tolerance, non-contact laser distance sensors can be used to close the loop with a z stage to keep the part in focus.

The focusing optics can be a fixed-focus head or a scan head. The fixed-focus head focuses the beam only and relies on stages to move the part or itself, whereas the scan head has small moving mirrors that direct the beam in a certain sized xy area and also focuses the laser. The advantage of the scan head is that it can move the laser very quickly over small areas, which is typically required for many micromachining applications. All stages are always linear drives. For scan heads, the part remains stationary during processing, but can be indexed to another processing area as needed. The area the scan head can process is usually relatively small—around 40 × 40mm. It is important to select scan heads with digital feedback. Otherwise, the positional errors (particularly from thermal drift) can really push up the processing positional tolerances.

To process features exactly where they need to be, machine vision is usually an integral part of these systems. The vision in itself can require significant development with regard to camera resolution, lighting style, and wavelengths. In most cases, features can be positioned to ±5µm of a target location, and even better when the fiducial location is close to the feature location. As noted earlier, there can be some wander of the laser, so this also has to be considered. A datum procedure is needed to know where the beam is in space.

Debris management is one aspect of these systems that can be easily overlooked. Where does all the removed material go, and does it matter if it lands back on the part? The ultrafast lasers produce nanoparticles that tend to be charged, and so tend to stick to surfaces. In some cases, these particles can be cleaned using an ultrasonic bath, but in other cases, the system may require use of extraction—possibly using multiple extraction methods.

As with any precision process, tooling is a key factor. For thin planar parts, vacuum chucks are commonly used. Non-planar parts usually need custom tooling. In each case, location features and fiducial features can be used for part location and feature-to-feature location for vision systems.

Summarizing system needs

Before moving to system fulfillment, one must satisfy a number of milestones, including application feasibility, application development for production, producing a sufficient number of pre-production parts, and—most importantly—developing a clear technology solution route for a production machine. There is value in completing these steps with a single company, because the system concept and design are executed from the foundational knowledge associated with developing the application process.

About the Author

Geoff Shannon, Ph.D. | Director Strategic Marketing for Precision Manufacturing, Coherent

Geoff Shannon, Ph.D., is Director Strategic Marketing for Precision Manufacturing at Coherent (Santa Clara, CA) and an Editorial Advisor to Industrial Laser Solutions. He previously served as Laser Technology Manager for Miyachi Unitek, specializing in the development of lasers and applications for existing and new markets. Shannon has a BEng in Mechanical Engineering and PhD in Laser Welding Technology from the University of Liverpool. His 20-year career in laser technology has centered around applications research and development and new product development of lasers and systems.
