Laser beam dump from Ophir-Spiricon

Feb. 11, 2010

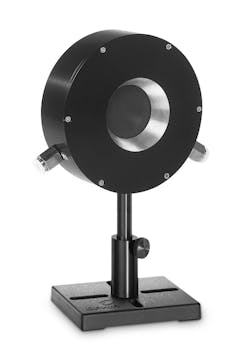

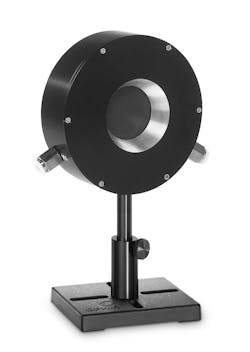

Ophir-Spiricon announced two new Laser Beam Dump products for high power applications, the BD5000W-BB-50 and the BDFL500A-BB-50.

Ophir-Spiricon (www.ophir-spiricon.com) announced two new Laser Beam Dump products for high power applications, the BD5000W-BB-50 and the BDFL500A-BB-50. These devices are designed to safely absorb the "unused" part of a high-power laser beam and dissipate the resulting heat, protecting nearby personnel and equipment. The BDFL500A-BB-50 is a fan-cooled Beam Dump for up to 500W. The BD5000W-BB-50 is a water-cooled Beam Dump for even higher power applications, up to 5kW.

Both Laser Beam Dumps have a 50mm aperture. A broadband absorber makes them suitable for applications across a wide spectral range, from UV to far IR. The absorber has a high damage threshold, handling 7 kW/cm2 at 500W and 3kW/cm2 at 5kW. The Beam Dumps are compact units with standard mounting configurations.
