CONCOA introduces high-flow backup gas distribution and management system

April 19, 2010

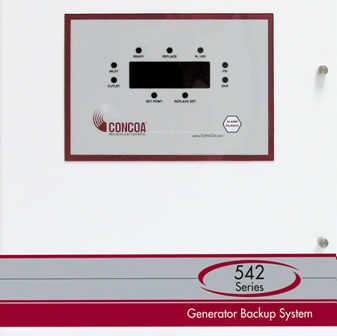

CONCOA, Virginia Beach, VA, has introduced an advanced gas distribution and management system designed to provide high-flow gas generators, compressors, and bulk supply systems with continuous reserve supply. Built for use in the event of power loss or if the supply system provides an insufficient amount of gas, the Series 542 High-Flow Backup automatically activates the reserve to provide gas supply without interruption.

CONCOA, Virginia Beach, VA, has introduced an advanced gas distribution and management system designed to provide high-flow gas generators, compressors, and bulk supply systems with continuous reserve supply. Built for use in the event of power loss or if the supply system provides an insufficient amount of gas, the Series 542 high-flow backup automatically activates the reserve to provide gas supply without interruption.

Good for use in high-flow building or facility systems with nitrogen, air, helium, carbon dioxide, nitrous oxide, oxygen, or argon, Series 542 features an onboard Web server with embedded proprietary I-LINK software, enabling remote programming and monitoring. Users can program the pressures at which the backup engages and the low-reserve alarm point, as well as continually monitor pipeline pressure and reserve status.

Check valves on both the generator and the reserve prevent back flow to the generator or reserve cylinder, while shut-off valves allow for isolation and disconnection of either line. Materials of construction are high-purity brass bar stock on the body, chrome-plated die cast zinc, PCTFE (3000 PSIG) on the seat, a 40-micron 316L stainless steel mesh filter, and diaphragms/pigtails of 316L stainless steel. CGA connections are brass with a check valve, the check-vale seat is PTFE or Viton, and the enclosure is NEMA 12 powder-coated steel. The series is available with numerous inlet options including CONCOA high flow 629 Series micromanifolds and High Flow 628 manifold headers designs.

Specifications include a large digital pressure display and a multi-color LED status display, 3000 PSIG (210 BAR) maximum inlet pressure, 0 to 140 degrees F temperature range, and 50 to 250 PSIG (0 to 17 BAR) adjustable pressure range, 1.0 Cv. Weight is 45 lbs. (10.45kg).
