Aachen, Germany – At the International Sheet Metal Working Technology Exhibition, EuroBLECH 2010 in Hanover, Germany (October 26 to 30), the Fraunhofer Institute for Laser Technology (ILT) presented tailor-made system solutions for higher component precision and process stability.
By combining laser cutting and laser welding in a single processing head, the Fraunhofer researchers have created a system that leads to higher flexibility in plant dimensioning, optimizing the processing sequence and reducing the clamping, storage, and transport times. To do this, the institute has developed a so-called combi-head, which is produced and marketed by the cooperation partner Laserfact GmbH in Aachen and whose latest functional upgrades were presented at EuroBLECH.

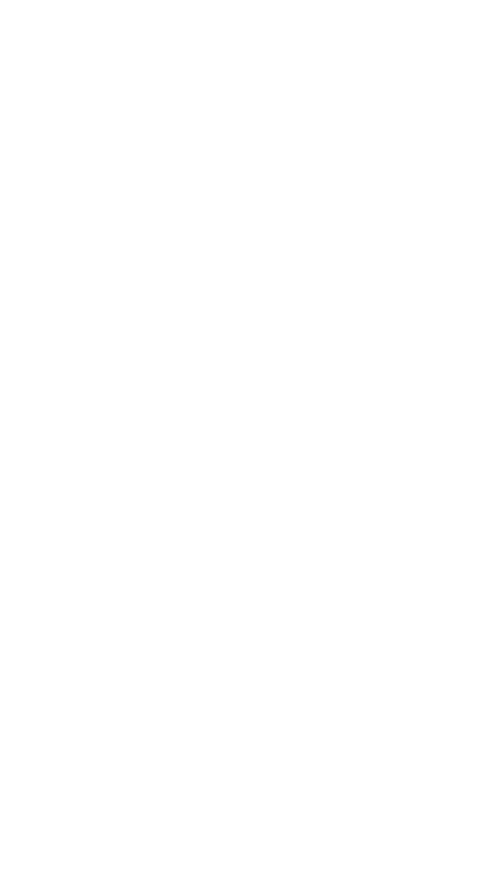

The combi-head cuts and measures the U-shaped section. Courtesy: Fraunhofer ILT, Aachen.
Thanks to the Tool Center Point, common to both processes, component precision and process stability during laser cutting and welding have been significantly increased. The signals from the capacitive distance sensor system of the combi-head are used for normal distance control as well as for component measurement so as to precisely predetermine the subsequent weld seam.
In this way, complex sheet metal component parts can be cut to size, measured, welded and finally cut again, all in an integrated process chain. Dr. Dirk Petring, group manager of Macro Joining and Cutting, explains, “The connection of combi-processing and capacitive component measurement is not only suitable for concealed t-joints in structural components of automobile construction, but can also offer new solutions wherever curved or deep-drawn sheet metal parts need to be joined together to create a precise sheet metal group in spite of their geometric tolerances.”
TCP and processing heads were also a part of another process developed at the Fraunhofer ILT: an image processing system “observes” the laser processing position on the workpiece directly through the processing optics – analogous to photography with a single lens reflex camera. The direct surroundings of the processing position are analyzed by a camera system with downstream image processing.
“The system measures directly in the area of the processing position and not at the head or in the robot axes,” says Dipl. Ing. Christoph Franz, Fraunhofer ILT scientist. “Since the process gauges the ongoing measurement accuracy, no measurement errors are made.” The measuring system records the current process speed and uncovers deviations from the preset values. It ensures that the processing head follows the contours of the workpiece exactly.
“The user receives precise feedback on how the cinematic process parameters comply to the track that was previously programmed into the machine control system. With this process, the tracks of any processing system can be measured," adds Franz. This is an important point with lasers, for which the so-called energy per unit length has to be constant during the entire processing.
The combi-head welds on the face plate. Courtesy: Fraunhofer ILT, Aachen.
For more information, contact: Dr. Dirk Petring at [email protected], Dipl.-Ing. Christoph Franz at [email protected] or Dipl.-Phys. Michael Ungers at [email protected].
