Fiber laser control

June 1, 2015
Prima Power Laserdyne has introduced its S94P control, which helps prevent "back-wall" damage when trepan and percussion drilling turbine engine combustor components.

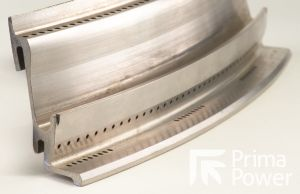

Champlin, MN - Prima Power Laserdyne has introduced its S94P control for the company's 795 and 430BD fiber laser systems, which helps prevent "back-wall" damage when trepan and percussion drilling turbine engine combustor components. Back-wall damage occurs when impingement of the laser beam on the part surface behind the one being drilled causes unacceptable melting of the surface of the back wall. The feature also helps to minimize the buildup of debris on the back wall.

The S94P control's advanced laser parameter control capability makes it possible to minimize and, in some applications, eliminate back-wall damage in parts with gaps down to 1mm between the back wall and drilled surface. The control also provides reduced damage while maintaining throughput of 1.0–1.5 s per hole. The company's patented Optical Focus Control feature, for which there is no side sensing (as can be the case with capacitance-based focus control), ensures precise location of the holes, whether they are perpendicular or at shallow angles to the surface. This is critical if there is another surface near that is being laser-drilled.

For more information, please visit www.primapower.com.

About the Author

Industrial Laser Solutions Editors

We edited the content of this article, which was contributed by outside sources, to fit our style and substance requirements. (Editors Note: Industrial Laser Solutions has folded as a brand and is now part of Laser Focus World, effective in 2022.)
