CEL isolated gate drive optocouplers feature fast switching times

Sept. 20, 2010
The PS9505 and PS9305 series isolated gate drive optocouplers provide high common mode transient immunity (CMR), high output current, and fast switching times.

The PS9505 and PS9305 series isolated gate drive optocouplers provide high common mode transient immunity (CMR), high output current, and fast switching times. On the input side, they contain a GaAlAs LED, and on the output side, they contain an integrated receiver containing a photo diode, a signal processing circuit, and a power transistor. Large peak output current reaches 2.5 A max and 2.0 A min; high-speed switching at tPLH, tPHL = 0.25 μs max; and high common mode transient immunity at CMH, CML = ±25 kV/μs min.
California Eastern Laboratories (CEL)
Santa Clara, CA

www.cel.com

More Products

-----

PRESS RELEASE

New Isolated Gate Drive Optocouplers Feature High Current and Fast Switching Times

Applications include power transistor driving, induction heating, and industrial inverters

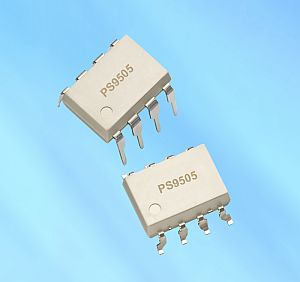

Santa Clara, Calif. — April 19, 2010 — California Eastern Laboratories (CEL) is now shipping its new PS9505 and PS9305 series isolated gate drive optocouplers. The new family of optocouplers provides high common mode transient immunity (CMR), high output current, and fast switching times.

The PS9505, PS9505L1, PS9505L2, PS9505L3 and PS9305L are optically coupled isolators. On the input side, they contain a GaAlAs LED. On the output side, they contain an integrated receiver containing a photo diode, a signal processing circuit, and a power transistor.

“Our new line of isolated gate drivers offers advantages in designs that use switching power transistors such as motor control, inverters for solar cells, and induction heating. These devices offer the high output current and noise immunity of our previous generation while providing improved response time and reduced power consumption,” said Jeremy Dietz, Director of CEL’s Opto SBU. “The dual offering of standard DIP packaging and the new SDIP package allows designers maximum flexibility in meeting the robust creepage distances required in today’s industrial designs,” continued Dietz.

Technical Information

Large peak output current (2.5 A max, 2.0 A min)

High speed switching (tPLH, tPHL = 0.25 μs max)

UVLO (Under Voltage Lock Out) protection with hysteresis

High common mode transient immunity (CMH, CML = ±25 kV/μs min)

Availability

The PS9305 and PS9505 family of optocouplers are in volume production with samples available now.

For more information on the new family of optocouplers, please visit:

PS9305
http://www.cel.com/parts.do?command=load&idRootPart=2116

PS9505
http://www.cel.com/parts.do?command=load&idRootPart=2118

Please contact David Cohen at [email protected] for more information or to arrange a briefing.

-----
