Position sensing array from SiTek uses triangulation technique

Aug. 6, 2010
A position sensing detector array consists of 16 parallel one-dimensional PSD elements on the same chip.

A position sensing detector array consists of 16 parallel one-dimensional PSD elements on the same chip. Using a triangulation technique, the reflection of a laser line or multiple laser spots onto the array provides the contour of an illuminated object. A straylight elimination feature prevents any decrease in speed and linearity.
SiTek Electro Optics
Patille, Sweden

[email protected]

-----

PRESS RELEASE

High Speed 3D-Measurement with SiTek PSD-Array

SiTek Electro Optics AB has now extended their standard range of Position Sensing Detectors (PSDs) with a PSD array.

The PSD array consists of 16 parallel one-dimensional PSD elements on the same chip. By utilizing the triangulation technique the reflection of a laser line or multiple laser spots onto the PSD array will provide information about the contour of the illuminated object. The possibility for simultaneous readout of the 16 elements together with the fast response of each element makes the PSD array suitable for applications like high speed 3D contour measurements and measurements of parallel, moving objects such as cantilevers.

To ensure high sensitivity the gap between the elements has been minimized giving a fill factor of more than 97%, still with low crosstalk and the same high linearity as SiTeks other one-dimensional PSDs.
In order to preserve the performance also under stray light conditions the PSD array has been designed with SiTeks unique built in stray light elimination feature, a patented design which eliminates the decrease in speed and linearity due to stray light.

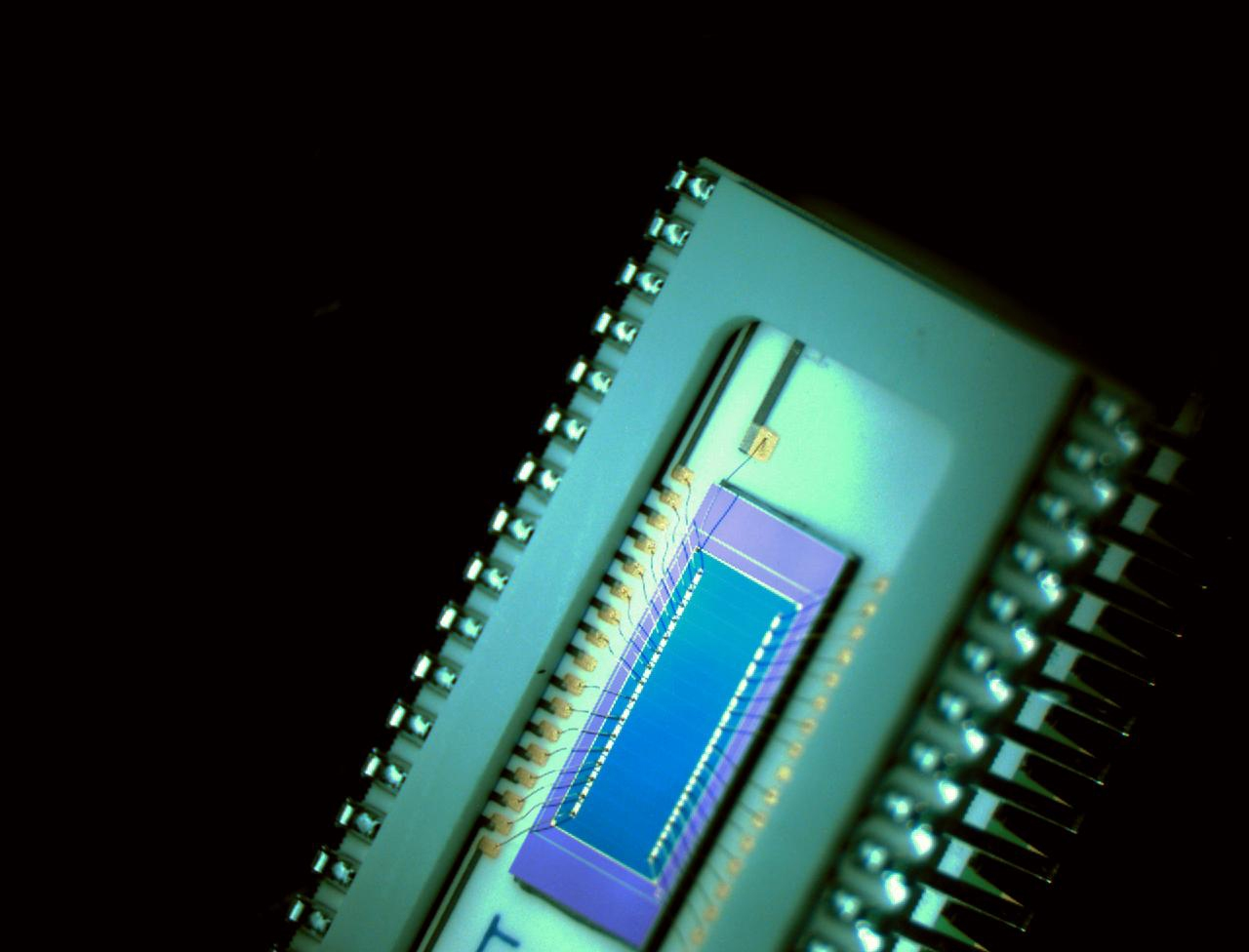

The PSD array is delivered in a 34 pin dual in line type ceramic package and has a measurement length of 2,5 mm but can be custom designed with any length and/or number of PSD elements.
