CLEO/Laser Focus World INNOVATION AWARDS: Terahertz scanning reflectometer from Applied Research & Photonics takes top award

The 2011 CLEO/Laser Focus World Innovation Awards program is designed to honor groundbreaking products in the field of photonics and laser science.

Pennwell web 250 221

The 2011 CLEO/Laser Focus World Innovation Awards program is designed to honor groundbreaking products in the field of photonics and laser science. The awards are sponsored by Laser Focus World magazine and the Optical Society’s (OSA; Washington, DC) Conference on Lasers and Electro Optics (CLEO) program.

Innovation Awards entrants are challenged to show how their application, service, or product (launched between September 2009 and March 2011) meets criteria such as significant impact to the photonics industry, excellent functionality and long life expectancy, secure patent position, and an exceptional level of innovation.

The awards were presented at the CLEO 2011 Plenary Session in Baltimore, MD. Information on the Innovation Awards can be found online at http://bit.ly/kJfZPa.

INNOVATION AWARD WINNER

Applied Research & Photonics (Harrisburg, PA)

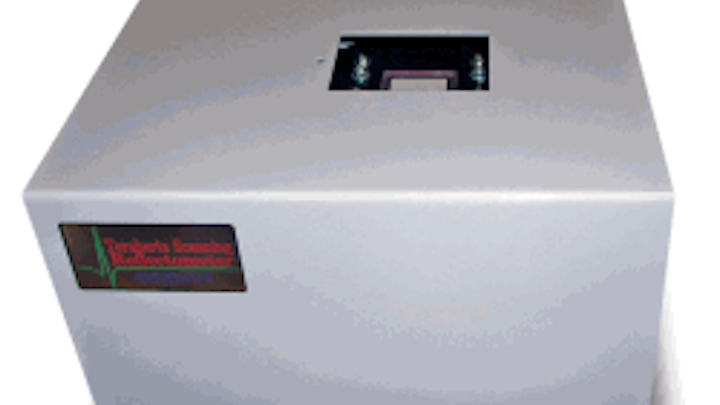

The 2011 CLEO/Laser Focus World Innovation Award winner was Applied Research & Photonics for its highly sensitive, low-power terahertz scanning reflectometer for direct measurement of diffusion gradients and permeation kinetics of materials including biological tissues, in real time. Before launch of its terahertz instrument, Applied Research & Photonics says there was no single instrument that provided measurement of both the concentration gradient of a permeating ingredient across the thickness of a substrate (such as skin tissue) and the rate (kinetics) of the permeation. The noninvasive reflectometer provides both measurements in real time.

Pennwell web 250 221

Using the difference frequency method, a continuous-wave terahertz signal is generated and directed to a sample at a 90º angle by an off-axis parabolic reflector. A motion controller scans the beam through the sample thickness, and a detection system records the reflected signal both with and without the permeating ingredient in real time while the permeating ingredient is diffusing. Computations using the reflection data yield both concentration of the permeation ingredient and its diffusion rate over time.

In addition to measuring diffusion coefficients for life-science applications, the reflectometer can also be applied to the optics and semiconductor industries—without the need for fluorescence or radioisotope labeling. For more information, go to http://arphotonics.net.

HONORABLE MENTIONS

AdValue Photonics (Tucson, AZ)

The first commercially available Q-switched fiber laser operating at 2 µm from AdValue Photonics enables new applications in light detection and ranging (lidar), sensing, and materials processing. Operating at an eye-safe wavelength, the fiber laser can also be used to generate 3–5 µm mid-infrared (mid-IR) radiation for environmental monitoring and IR countermeasures applications, or as a seed laser for high-power amplification.

Pennwell web 250 167

Its adjustable pulse repetition rate from 1 Hz to 30 kHz and 20–50 ns pulsewidth delivers 100 mW average power at 20 kHz, opening up new application possibilities that require a pulsed, high-peak-power source. For more information, go to www.advaluephotonics.com.

ID Quantique (Geneva, Switzerland)

An advanced system for single-photon detection from ID Quantique can be used for cryptography, eye-safe lidar, and single-photon source characterization applications. Its innovation lies in the system’s ability to operate at high speeds up to 100 MHz in free-running mode, without requiring cryogenic cooling.

Pennwell web 250 214

The indium-gallium-arsenide (InGaAs) fiber-coupled avalanche photodiode (APD) accounts for its <200 ps timing jitter; most commercially available detectors strive to reach 300 ps levels. The system has adjustable photon-detection probability, adjustable delays, gatewidth, and deadtime. A two-channel auxiliary event counter allows singlemode or multimode fiber input and is compatible with homemade photon detection systems in the scientific and industrial community. For more information, go to www.idquantique.com.
