11 Mpixel GigE camera for scientific imaging by Lumenera

The Lg11059 11 Mpixel Gigabit Ethernet (GigE) digital camera from Lumenera (Ottawa, ON, Canada) delivers 5 fps at full 4008 × 2672 resolution for scientific imaging applications with low-light conditions, such as pathology. The camera's CMOS image sensor with a 43.3 mm image diagonal and electronic global shutter delivers low dark current noise, negligible lag, and low smear. Additional features include a high dynamic range up to 66 dB, an integrated Canon EF lens mount, and selectable 8 or 14 bit image data.

More Biophotonics Products

-----

PRESS RELEASE

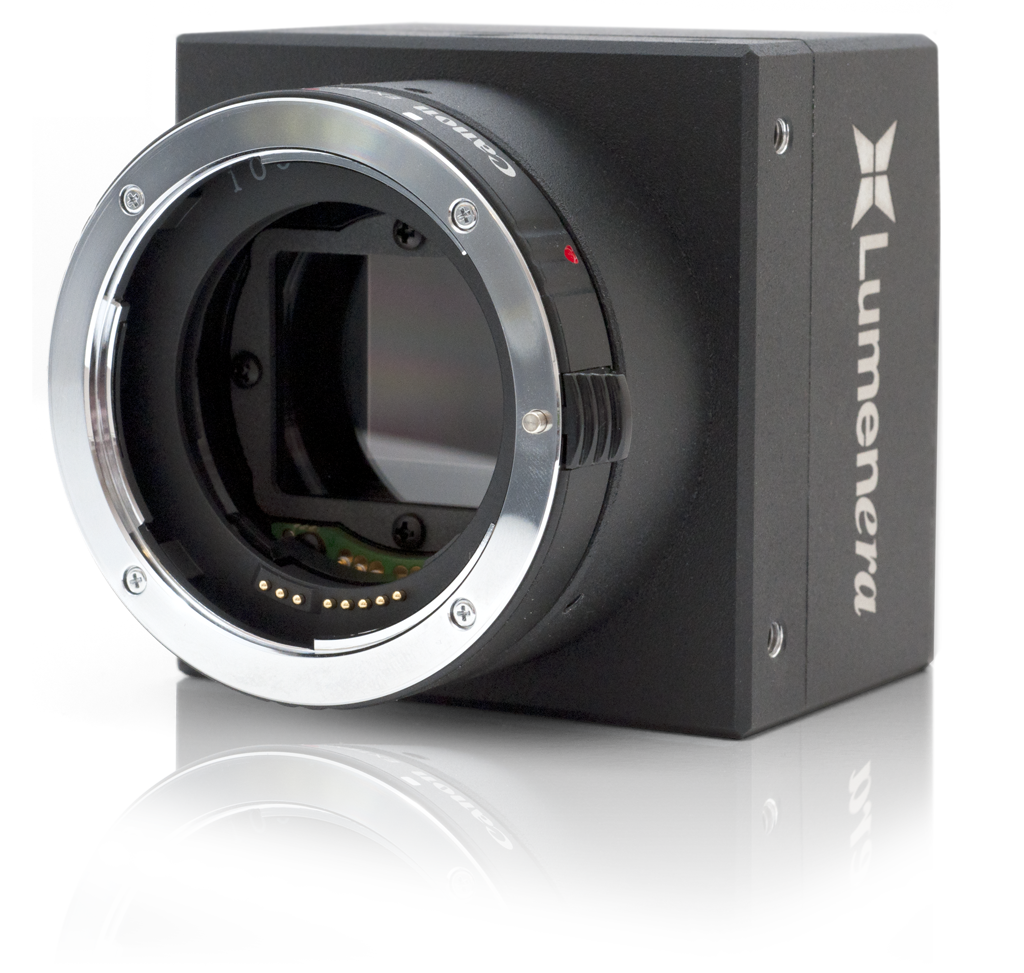

Lumenera® Corporation Introduces Improved High Resolution 11 Megapixel GigE Camera

Compact Lg11059 now offers enhanced noise performance and higher bit depth

Ottawa, Ontario, Canada – April 17, 2012 - Lumenera Corporation, www.lumenera.com, a leading manufacturer and developer of high performance digital cameras and custom imaging solutions for industrial, scientific and surveillance markets, today introduced the newly engineered, small form factor 11 megapixel Gigabit Ethernet (GigE) digital camera for industrial and scientific imaging applications. The new Lg11059 provides significant technological advancements, enhanced performance and ease-of-use over its predecessor including lower noise, and higher bit depth while housed in a smaller, robust enclosure.

Lumenera’s progressive scan Lg11059 digital camera offers 5 frames per second at full 4008 x 2672 resolution, high dynamic range of up to 66 dB, integrated Canon EF lens mount, selectable 8 or 14-bit image data plus locking GigE power and GPI/O (Hirose) connectors. The high performance Kodak KAI-11002 Interline Transfer image sensor with a 43.3 mm image diagonal and electronic global shutter delivers low dark current noise, negligible lag and low smear. The Lg11059 is ideally suited for applications with low-light conditions where high dynamic range is vital, while providing excellent sensitivity and high fidelity color reproduction.

The Lg11059 measures 76.2 x 76.2 x 82.6 mm, making it well suited for installation in small spaces or compact enclosures. The fully locking Gigabit Ethernet cabling, power connector and digital I/O interface ensure a simple plug-and-play installation. Simplified I/O cabling is provided through a locking Hirose connector supporting 4 output and 3 input ports that can be automatically or manually controlled through software. Pathology, aerial surveillance, traffic monitoring and industrial inspection are ideal applications for this 11 megapixel camera.

Full streaming of uncompressed video along with still image captures are easily controlled through Lumenera’s standard API interface or through the GigE Vision interface. Region of interest and binning modes allow the camera to run at faster frame rates.

“Lumenera has timed the launch of the Lg11059 to meet the increased market demand for megapixel GigE cameras.” said Darren Bessette, Product Manager at Lumenera Corporation. “The camera was designed for applications requiring increased bandwidth, higher resolution and longer cable lengths. These features, combined with a fully integrated Canon EF lens mount, position the Lg11059 as an ideal, standalone solution.”

The Lg11059 is now shipping and is available in color or monochrome as well as custom variants. Contact [email protected] with your imaging requirements, or visit the Lumenera website at www.lumenera.com for more information on this product and our custom OEM imaging solutions.

About Lumenera

Lumenera Corporation, a division of Roper Industries, and headquartered in Ottawa, Canada, is a leading developer and manufacturer of high performance digital cameras and custom imaging solutions. Lumenera cameras are used worldwide in a diverse range of industrial, scientific and security applications.

Lumenera solutions provide unique combinations of speed, resolution and sensitivity in order to satisfy the most demanding digital imaging requirements. Lumenera customers achieve the benefit of superior price to performance ratios and faster time to market with the company's commitment to high quality, cost effective product solutions. For further information about Lumenera, please visit www.lumenera.com or call 613-736-4077. To receive Lumenera press releases as they are issued, contact us at [email protected].

-----
