Laser fiber light guide for sample ablation by Siskiyou

Aug. 24, 2011

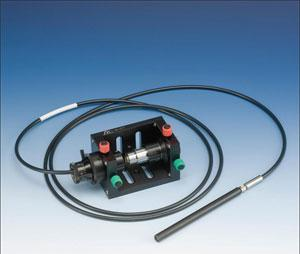

The FLG-SMA fiber light guide from Siskiyou for light stimulation, uncaging, and sample ablation features a 2 m fiber cable with a 600 µm core and SMA connectors to maximize coupling efficiency across a wide range of input powers and wavelengths.

The FLG-SMA fiber light guide from Siskiyou (Grants Pass, OR) for light stimulation, uncaging, and sample ablation features a 2 m fiber cable with a 600 µm core and SMA connectors to maximize coupling efficiency across a wide range of input powers and wavelengths. A 0.375" diameter tube with an input asphere collimates the divergent output from a fiber input, and the output lens focuses the light to a diffraction-limited spot 16.5 mm from the tip. As a standalone item, it mounts in a fiber coupler or an optical mount for free-space coupling applications.

More Biophotonics Products

-----

PRESS RELEASE

New External Focused Laser Guide for Life Science from AMS Technologies

AMS Technologies introduces the FLG-SMA fiber light guide from Siskiyou which is ideal for introducing a focused laser spot into many experiments, notably onto a sample under observation on a microscope – without going through the microscope optics.

The 2-meter fiber cable has a 600 micron core to maximize coupling efficiency across a wide range of input powers and wavelengths. It's ideal for light stimulation, uncaging, and sample ablation. Industry standard SMA connectors are supplied on the input end of the FLG, and the output end of the FLG-SMA/2.

The FLG tube contains two aspheric lenses – the input asphere collimated the divergent output from a fiber input, and the output lens focuses the light to a diffraction-limited spot 16.5mm from the tip. The tube is 0.375" diameter for easy mounting in a wide variety of micromanipulators, while the long working distance allows for easy placement next to a microscope objective. Depending on the input angle, the spot will have varying ellipticity on the sample.

The FLG-SMA/2, when connected to out CBH-1, provides a simple connectorized output from a microscope for coupling to a spectrometer, photon counter, or other connectorized object. As a standalone item, it can mounted in our fiber coupler or an optical mount for free-space coupling applications. Used as an input, it allows the introduction of a laser source to a microscope, via the microscope optics, for a variety of applications.

More information...

Visit us at LASER 2011, May 23-26 2011, Munich – hall B1 booth # 301 or email [email protected]

AMS Technologies – where technologies meet solutions

AMS Technologies is Europe’s leading solution provider and distributor for Optical, Power and Thermal Management Technologies, with almost 30 years of experience to date and currently serving more than 1000 European customers. AMS Technologies has been delivering solutions into a variety of high-tech markets, including renewable energies, medical, defence & aerospace, telecom & datacom, research & scientific and various other industrial segments. Our customer base consists of Europe’s largest leading technology corporations, a network of universities and research institutes as well as the most promising start-ups.

We thrive by working in a ‘customer first’ environment. Our pan-European customers are serviced from a network of local offices in Germany, the UK, France, Italy, Spain and Norway, with a focussed operations and logistics centre located in Munich, Germany. For further information about AMS Technologies please look at www.amstechnologies.com

-----
