NC State converts carbon and nanotubes into diamond optical fiber

Feb. 1, 2019
The method involves melting the carbon using nanosecond laser pulses and then rapidly cooling the material.

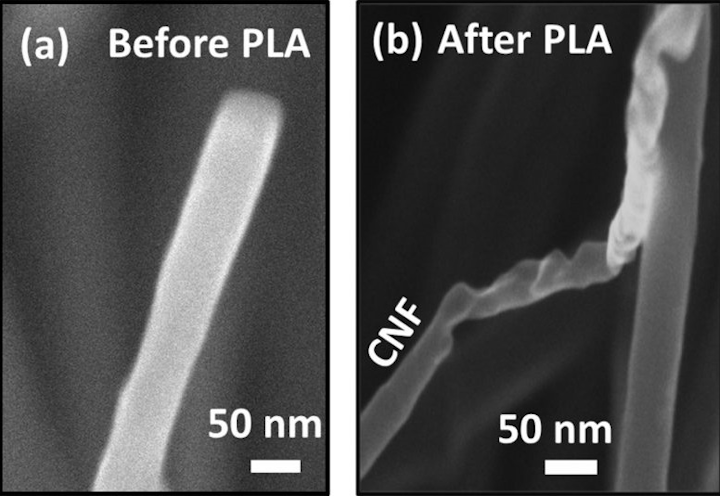

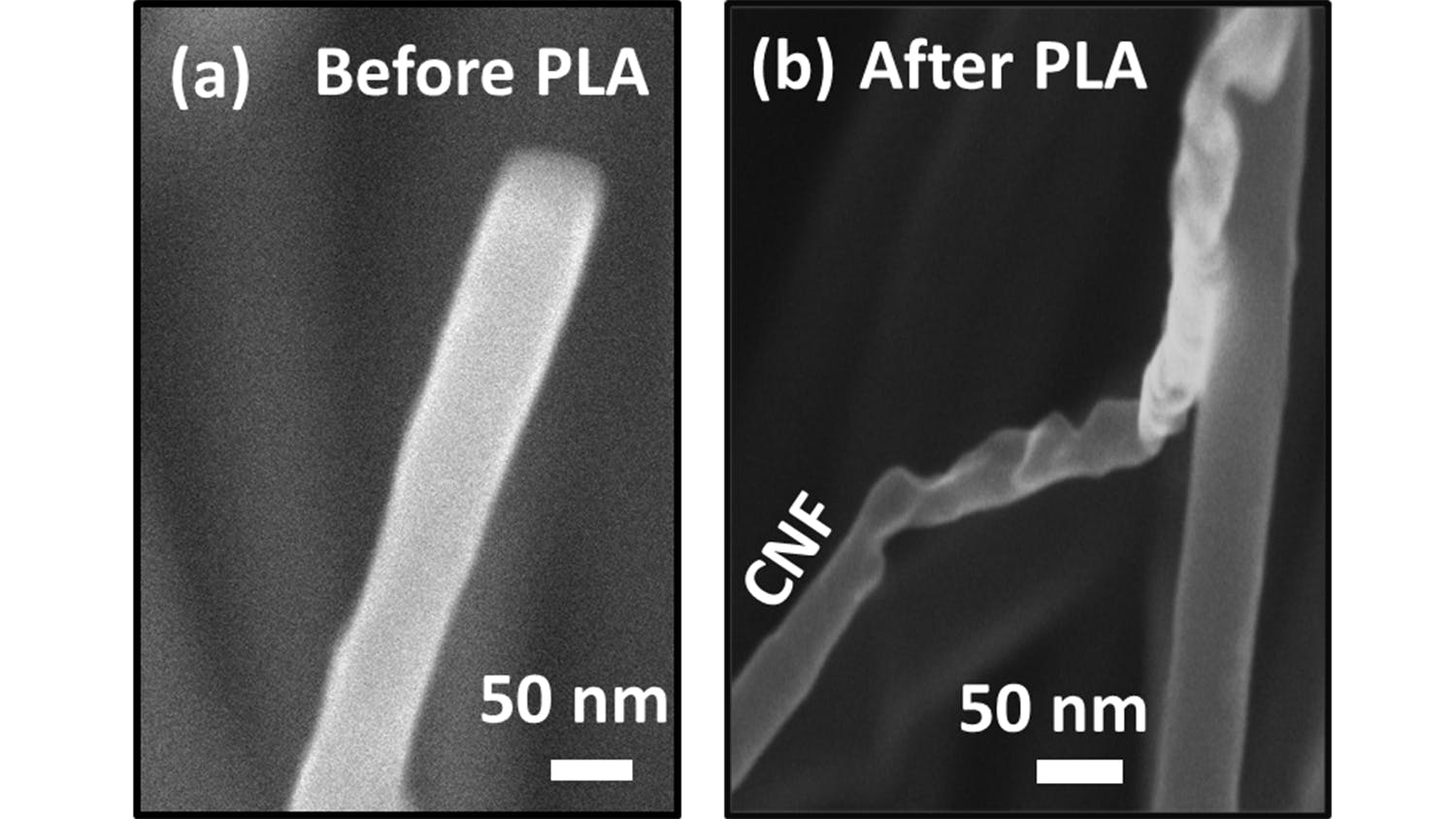

IMAGE: High-resolution scanning electron microscopy images show (a) a carbon nanofiber (CNF) before pulsed laser annealing (PLA) and (b) a CNF after PLA revealing the conversion of carbon nanofibers into diamond nanofibers. (Image credit: NC State)

Research from North Carolina State University (NC State; Raleigh, NC) has demonstrated a new technique that converts carbon fibers and nanotubes into diamond fibers at ambient temperature and pressure in air using a pulsed laser method. The conversion method involves melting the carbon using nanosecond laser pulses and then quenching, or rapidly cooling, the material.

These diamond optical fibers could find uses in nanoscale devices with functions ranging from quantum computing, sensing, and communication to diamond brushes and field-emission displays. The method can also be used to create diamond-seeded carbon fibers that can be used to grow larger diamond structures using hot-filament chemical vapor deposition and plasma-enhanced chemical vapor deposition (CVD) techniques. These larger diamond structures could find uses as tool coatings for oil and gas exploration as well as deep-sea drilling, and for diamond jewelry.

Previous methods used to convert non-diamond carbon to diamond have involved using extreme heat and pressure at great expense with a limited yield. Melting the carbon with laser pulses and then undercooling it with a substrate made of sapphire, glass or a plastic polymer are the two keys to the discovery, said Jagdish Narayan, John C. Fan Distinguished Chair Professor in the Department of Materials Science and Engineering at NC State and corresponding author of a paper describing the work. "Without undercooling, you cannot convert carbon into diamond this way," Narayan said.

When heated, carbon normally goes from a solid state to a gas. Using a substrate restricts heat flow from the laser pulse enough that the carbon does not change phases. The laser, similar to those used for Lasik eye surgery, is used for only 100 ns and heats the carbon to a temperature of 4000 K, about 3727 degrees C.

NC State has filed for a patent licensing the technology.

The paper, "Direct conversion of carbon nanofibers and nanotubes into diamond nanofibers and subsequent growth of large-size diamonds," is published in Nanoscale, a journal of the Royal Society of Chemistry. The paper was coauthored by Anagh Bhaumik, a research assistant in the Narayan lab; Ritesh Sachan, an assistant professor at Oklahoma State University and former researcher in the Narayan lab; Ariful Haque and Siddarth Gupta, graduate students in the lab; and Punam Pant, a research scientist in the Narayan lab. The research was done with support from the National Science Foundation under grant number DMR 1735695.

SOURCE: North Carolina State University;
