Precision Motorized Polarization Rotation Stage

    Nov. 18, 2022
    Oz Optics handy and cost-effective motorized rotators enable precise control of the polarization states of a single optical stage or multi-stage system with multiple optical paths.
    Related To:

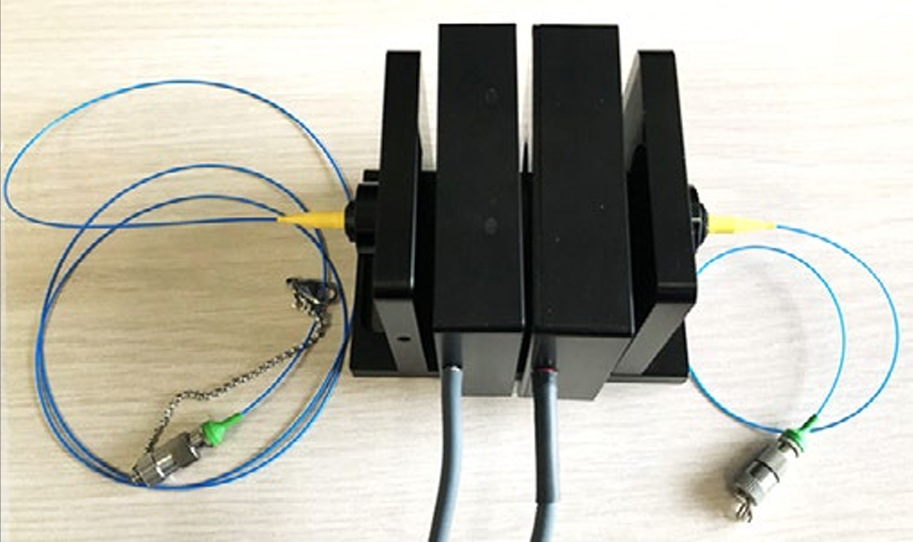

    A dual-stage rotation stage coupled to optical fibers at the input and output ports
    A dual-stage rotation stage coupled to optical fibers at the input and output ports

    Oz Optics handy and cost-effective motorized rotators enable precise control of the polarization states of a single optical stage or multi-stage system with multiple optical paths. These rotators can be controlled and synchronized to perform precise rotations sequentially or in parallel using a single compact control unit. The control unit is incorporated along with a processor and touch screen in a palm-sized enclosure to control multiple motors via an intuitive graphical user interface (GUI)> Plug-and-play features are realized and enabled via a customizable GUI regardless of the system complexity for demanding applications.

    The input and output ports of a given stage can be fiber-connector receptacles, pinholes for free-space applications, or pigtailed with single mode, polarization maintaining or multimode fibers. The light beam is then directed through one or more rotators, where the polarization state (the electric field of the propagating wave) is manipulated via rotating waveplates, polarizer plates, polarizer prisms or polarization beam splitters with sub-degree resolution.

    High power optics, connectorized fibers for wide ranges of operating wavelengths are available.

    The software and the associated GUI can be modified upon request.

    Features

    • Precision rotation of half wave plates, quarter wave plates and polarizers to manipulate polarization

    • Built-in encoder for closed loop operation

    • Compact handheld plug-and-play device with touch screen control or with a computer via a USB port

    • User-friendly software with an intuitive GUIs

    • Can be pigtailed with single-mode, polarization maintaining or multimode fibers

    • Customizable software and GUI upon request

    • Interchangeable optics, holders and receptacles

    Applications

    • Automation of multi-polarization state analysis

    • Quantum state tomography

    • Polarization Calibration

    • Polarization state analyzer

    • Polarized fiber optic source

    • Polarization extinction ratio controller and PM fiber axes conversion

    • Optical Interferometric systems

    • Laser to fiber coupling and coherent detection
