Compact, Linear Voice Coil Motor with 0.625 Stroke Tolerates Tilting and Misalignment!

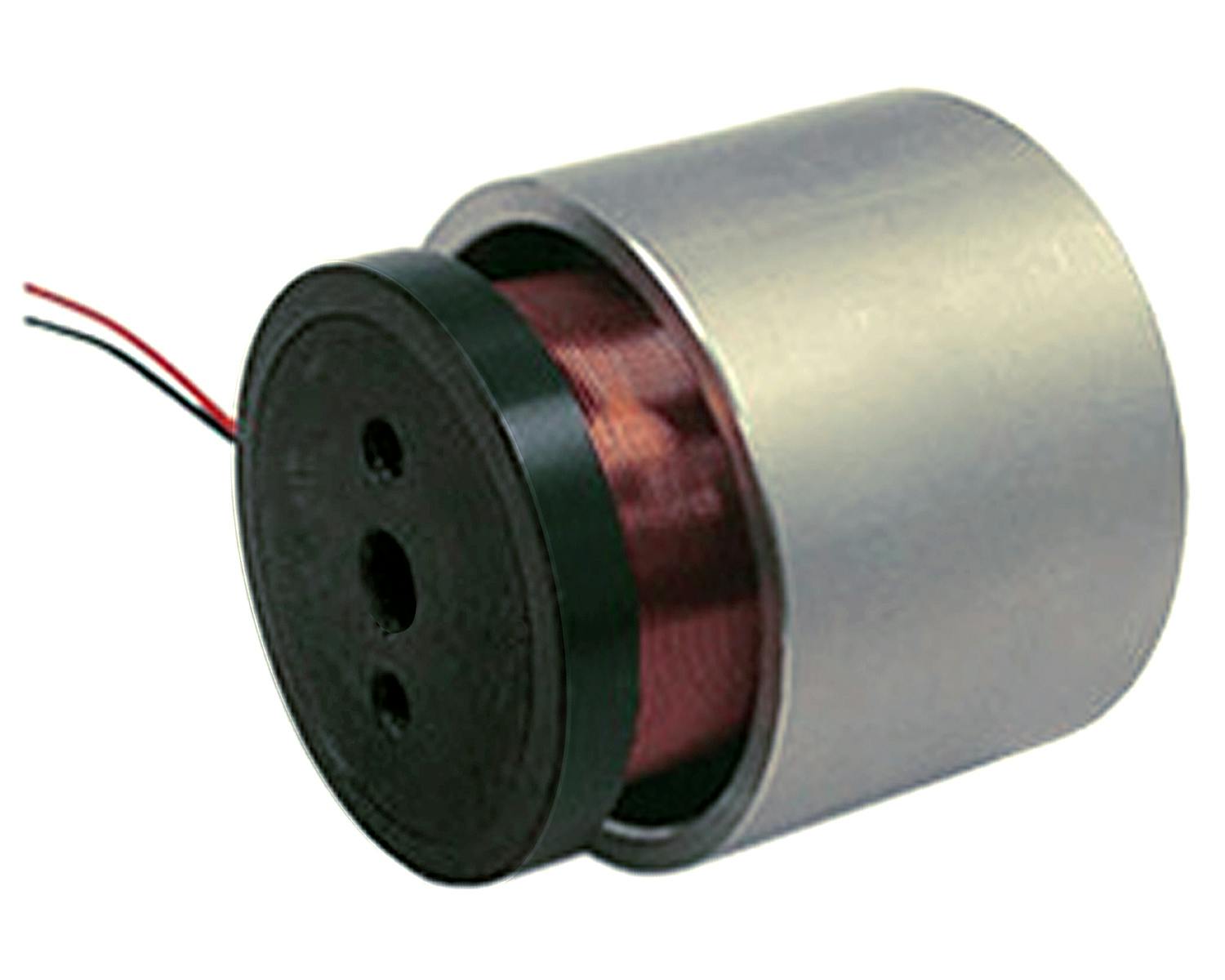

Van Nuys, CA - Moticont has added a Large Air Gap Linear Voice Coil Motor to their extensive LVCM Series of Linear Voice Coil DC Motors.  The new LVCM-051-032-06 Linear Voice Coil Motor (also called a Moving Coil Motor) has been designed with a larger radial air gap to tolerate the tilting and misalignment that can be experienced when clamping out of parallel objects or moving off-center loads.   This compact linear motor is 50.8 mm (2.000 in.) in diameter with a 31.7 mm (1.250 in.) long housing and at mid stroke it is just 46 mm (1.81 in.).  Peak force is 40.8 N (9.2 lb.) at a 10% duty cycle and continuous force is 12.9 N (2.9 lb.).  Features of this low inertia, high acceleration / deceleration, clean, quiet, efficient, zero cogging, brushless DC servo motor makes it ideal for: Sorting, packaging, sampling, work holding and clamping, laser machining and drilling, wafer handling, and medical and pharmaceutical applications.

The made in America LVCM-051-032-06 features very high accuracy and repeatability when operated as a DC Servo Motor in a closed servo loop.  This linear motor features two 10-32 UNC-2B threaded mounting holes in the housing and two 10-32 UNC-2B threaded mounting holes in the coil end on 25.4 mm (1.000 in.) bolt circles for easy integration into new and existing applications.  A complete plug-and-play system including an encoder and servo controller is also available.

Is there a need for a smaller or larger diameter motor, one with longer travel, or more force?  There are multiple choices in this series of Moticont's LVCM linear motors based on diameter of the motor, and over 50 models based on length of stroke and/or force to select from.  To find the right motor for your application go to http://moticont.com/voice-coil-motor.htm

About Moticont - Moticont is a manufacturer of motion control products. Their product line includes voice coil motors, three phase brushless motors and positioning stages and slides.

Moticont is committed to exceeding their customers' quality expectations and industry standards throughout the design, manufacturing, service and technical support phases. Our modern manufacturing facility, highly controlled processes, committed staff, and extensive testing complement our product design strengths. This enables us to supply our clients with specialized small orders to high volume just-in-time deliveries.

We offer an extensive line of standard products ready to be shipped immediately from stock, and when standard products are not quite right for an application, highly trained design engineers are always available to develop custom motion control products to fit the specific needs or our customers.

For additional information contact our sales team at Moticont, 6901 Woodley Ave, Van Nuys, CA 91406; Toll Free: +1 (888) 785-1804, Tel: +1 (818) 785-1800, E-Mail [email protected] or visit the website at http://www.moticont.com
