Color calibration standard slide from Applied Image contains 24 colors

The IAM-9C-SECCAL color transmission calibration slide offers NIST-traceable color integrity of digitally captured microscopy images.

Laser Focus World Editors
May 1st, 2018
Content Dam Lfw Online Articles 2018 05 1804lfw Pro 2web

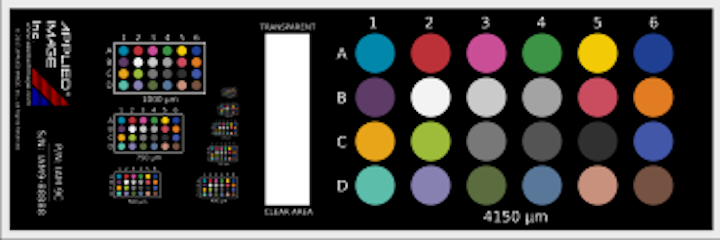

The IAM-9C-SECCAL color transmission calibration slide offers NIST-traceable color integrity of digitally captured microscopy images. The slide contains 24 colors in a 4 × 6 array, similar to the MacBeth color checker. Each of the 24 4150-μm-diameter patches is individually calibrated. Spectral transmission response is reported in 5 nm increments from 340 to 820 nm.

Applied Image

Rochester, NY

www.appliedimage.com
