CMOS sensors from e2v provide 60 fps at full resolution

July 20, 2012

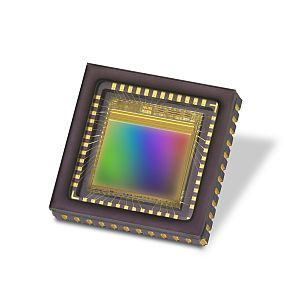

The 2 Mpixel EV76C570 1600 × 1200, global-shutter CMOS sensor features a 1/1.8 in optical format with a pixel size of 4.5 × 4.5 μm.

The 2 Mpixel EV76C570 1600 × 1200, global-shutter CMOS sensor features a 1/1.8 in optical format with a pixel size of 4.5 × 4.5 μm. Part of the Sapphire family, it provides 3000:1 global shutter efficiency, 60 fps at full resolution with a 120 MHz clock, 4x separately configurable ROIs, an embedded histogram, and 10 bit parallel output.
e2v
Essex, England

[email protected]

More Products

-----

PRESS RELEASE

e2v expands its Sapphire high-sensitivity, global shutter CMOS sensor family with a new 2MP device

e2v, a leading global provider of high performance imaging solutions, has added the 2MP EV76C570, 1600 x 1200 pixel device, to its Sapphire family of high-sensitivity, global shutter CMOS imaging sensors.

The higher resolution EV76C570 is the latest addition to e2v’s renowned industrial CMOS imaging sensor range. The device features an identical CLCC48 package with only a minor change in hardware, and retains optical compatibility with the 1.3MP Sapphire sensor that is already in full production. A 1/1.8 inch optical format is retained thanks to the reduced pixel size of 4.5µm x 4.5µm. The SPI register banks are also virtually identical, therefore customers who have developed vision systems around the Sapphire (EV76560) and/or Ruby (EV76C660 & EV76C661)1.3MP sensors are able to implement the new EV76C570 to extend their product portfolio with minimal extra development efforts.

The compatibility of the family also extends to the following embedded application features (which are shared with the 1.3MP version):

Both rolling and global shutter configuration with 3000:1 global shutter efficiency
60fps at full resolution with 120MHz clock
4x separately configurable regions of interest including the possibility to program each window with separate exposure and gain settings
A histogram embedded in the footer of the image data field for image statistics to reduce the processing overhead for auto exposure/gain algorithms
A lin/log pixel response mode for high dynamic range image capture
A 10 Bit parallel output which can be compressed to 8 bits using a multi-slope companding technique.

Applications for the EV76C570 range from machine vision and smart cameras, to print or barcode scanning, and also outdoor cameras for traffic and surveillance applications. It also has some new and unique modes of operation for 3D imaging applications that e2v will be announcing separately.

Gareth Powell, marketing manager of industrial imaging sensors at e2v said “The market success and growing cost/performance reputation of our Sapphire and Ruby devices have paved the way for this new addition to the family. The increased resolution is well timed with advances in processing speeds and with the emergence of new higher speed interfaces like USB3.0.”

The device is expected to be available for sampling from mid-May onwards, and full production is expected this autumn.

-----
