Silicon photomultiplier from SensL available in SMT package

Dec. 21, 2012

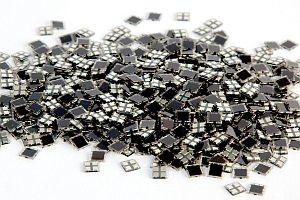

The M Series fast-timing silicon photomultiplier is available in a four-side, tileable surface-mount (SMT) package.
The M Series fast-timing silicon photomultiplier is available in a four-side, tileable surface-mount (SMT) package. It provides <250 ps time of flight CRT, <100 ps rise time with <200 ps output pulsewidth at FWHM, <34 V operation, and gain and optical response uniformity of < ±10%.SensL
Cork, Ireland
[email protected]More Products ----- PRESS RELEASE M Series SiPM Launched – ToF Capable and New SMT Package SensL is excited to announce our new M Series 3rd generation Fast Timing silicon photomultiplier which offers ultra fast rise and recovery times and is available in a new 4 side tileable surface mount (SMT) package with industry leading pitch. In addition to offering Time-of-Flight (TOF) capabilities and improved PDE over our previous detectors the new M Series offers unprecedented price/performance. The new detectors are available now on our eStore and are shipped in less than 48 hours. By leveraging our high volume supply chain and designing for lowest cost the new M Series detectors pricing starts at $20 USD in volume quantities which is a reduction of almost 30% from the previous generation detectors. Highlights of the new M Series detectors include: <250ps Time of Flight CRT <100ps Rise Time with <200ps Output Pulse Width FWHM <34V Operation Operating voltage varies only 20mV per °C Gain and Optical Response Uniformity <+-10% Our new M Series detectors are available in .25mm, 1mm, 3mm, and 6mm pixels in various array sizes including the newest 8×8 array of 6mm pixels. Package options include the new clear encapsulate SMT for re-flow solder requirements or when tight tiling is required for critical fill factor applications. -----Follow us on TwitterLaser Focus World has gone mobile: Get all of the mobile-friendly options here.Subscribe now to Laser Focus World magazine; it's free!
