VRmagic intros USB CMOS sensor cameras

Aug. 30, 2012

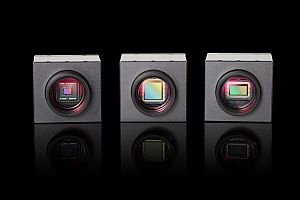

The VRmC-14, VRmFC-22, and VRmFC-42 USB single-sensor cameras all feature CMOS sensors.

The VRmC-14, VRmFC-22, and VRmFC-42 USB single-sensor cameras all feature CMOS sensors. The 2/3" CMV2000 sensor used in the VRmFC-22 delivers 44 fps at 2048 × 1088 pixels, while the 1" CMV4000 sensor built in the VRmFC-42 delivers 4.2 Mpixel resolution and records up to 24 fps. The VRmC-14 is equipped with the ICX445 CCD sensor from Sony, which can shoot up to 22 fps at a resolution of 1296 × 966. All three CMOS sensors are available in monochrome and color, and are assembled using the company's sensor positioning technique.
VRmagic
Mannheim, Germany

www.vrmagic.com

More Products

-----

PRESS RELEASE

USB single-sensor cameras with high-resolution sensors

Mannheim. The German camera manufacturer VRmagic is extending its portfolio of USB single-sensor cameras. From now on three new models with high-resolution sensors are part of the product series.

The CMOS sensors CMV2000 and CMV4000 from CMOSIS are especially light-sensitive and offer excellent image quality at high frame rates, even with great differences in brightness. Due to the global shutter technology the sensors are suitable for capturing both static and fast moving objects. The 2/3" CMV2000 sensor used in the VRmFC-22 delivers 44 frames per second at a resolution of 2048 x 1088 pixels. The 1" CMV4000 sensor built in the VRmFC-42 has a resolution of 4.2 megapixels and records up to 24 fps.

The VRmC-14 is equipped with the ICX445 CCD sensor from Sony, which can shoot up to 22 frames per second at a resolution of 1296 x 966. The 1/3" sensor is characterized by increased sensitivity to light, making it ideal for measurement and positioning purposes.

The three sensors are available in monochrome and color and are assembled using VRmagic’s ultra-precise sensor positioning technique. Before soldering the sensor is positioned and aligned on the board with highest possible precision.

About VRmagic
Headquartered in Mannheim, Germany, VRmagic develops, manufactures and sells cameras for industrial image processing, optical tracking systems and VR technology. A second business division specializes in simulators for medical training.

-----
