Sony color electrophoretic display is flexible and, due to precision alignment, brighter

May 19, 2011
Engineers at Sony Corporation have, through precision alignment, created a flexible color e-paper display with a color gamut that is better than similar attempts at color reflective e-paper displays.

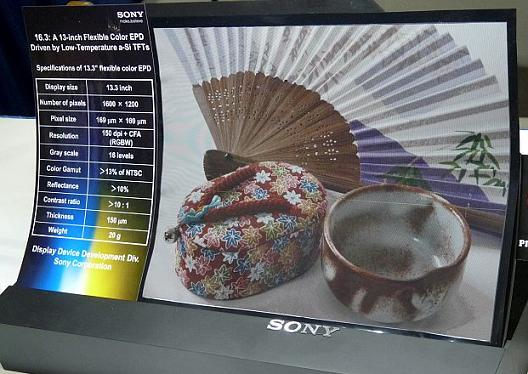

Kanagawa, Japan--Engineers at Sony Corporation have, through precision alignment, created a flexible color e-paper display with a color gamut that is better than similar attempts at color reflective e-paper displays. The 13.3 in. display was unveiled at the 49th SID International Symposium, Seminar & Exhibition (SID 2011).

The display is based on E Ink Corp.'s (Cambridge, MA) electrophoretic-display technology--a black-and-white type of display that is well-known as a result of its use in Amazon's Kindle e-book reader. The Sony display derives its color from a color-TFT plate containing green, red, blue, and white subpixels placed on top of the E Ink display. The Sony display has an NTSC color gamut of 13% and a reflectance of 10%; while these figures may sound mediocre, other previous attempts to create practical electrophoretic color e-reader displays have had color gamuts and reflectances that were even lower.

According to Sony, these relatively high figures were achieved by aligning the TFT plate to the E Ink display to a 0.35-micron resolution, allowing the black inter-pixel divisions to be narrowed, which in turn made the pixels and colors brighter.

The flexible display, which is fabricated on a plastic substrate, is 150 microns thick and weighs 20 g.

Source: Tech-On
