Industrial camera from Photron identifies production errors without a computer or network | Laser Focus World

Content Dam Lfw Online Articles 2016 09 1610lfw Pro 14 Web

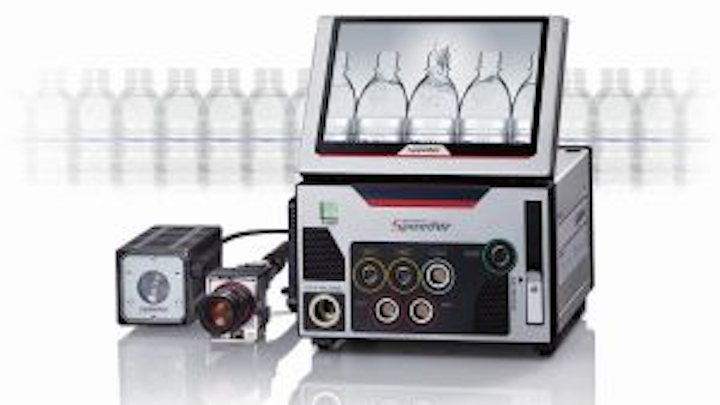

The PhotoCam SpeederV2 portable high-speed camera system is designed for production fault-finding. It identifies production errors on an integrated 7-in. LCD remote touch screen without a computer or network. It is available with one or two miniature remote camera heads, and provides up to 2000 frames/s at 512 × 512 resolution.
Photron
San Diego, CA
www.photron.com
