PIXELTEQ multispectral camera can image six spectral bands at 25 frames/s | Laser Focus World

Content Dam Lfw Online Articles 2016 09 1610lfw Pro 3 Web

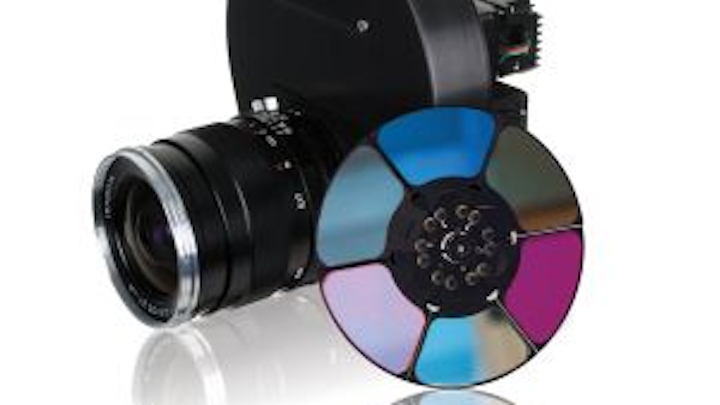

The SpectroCam VIS-SWIR 640 multispectral imaging camera is based on an indium gallium arsenide (InGaAs) sensor, full-frame 640 × 512 pixel resolution, and a 15-μm pixel pitch. It can produce live processed images of six spectral bands at 25 frames/s. A selection of filters for the camera is also available.
PIXELTEQ
Largo, FL
www.pixelteq.com
