Reconfigurable microfluidic metasurfaces create tunable color displays

April 1, 2018
Integrating microfluidic channels with titanium dioxide metasurfaces creates displays with distinct and high-resolution tunable colors and rapid transition time.

Despite rapid progress in creating color images from nano- or microstructured materials—a process called structural color—the optical characteristics of most nanostructures are static once they are fabricated, severely restricting their use in stereoscopic imaging, animation, point-of-care, and anticounterfeiting applications. But by integrating microfluidic channels with titanium dioxide (TiO2) metasurfaces, researchers at the Harbin Institute of Technology (Shenzhen, China) are now able to create displays with distinct and high-resolution tunable colors and rapid transition time.

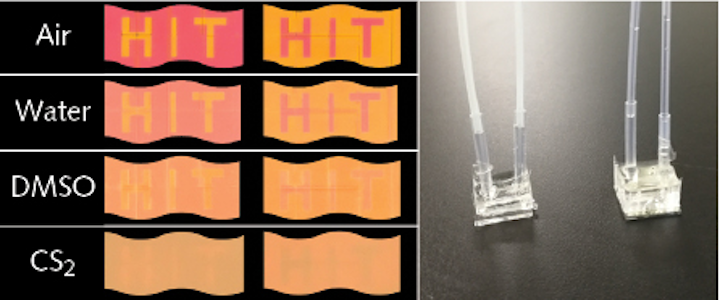

The metasurface is composed of an array of TiO2 nanoblocks that are embedded in a polymeric microfluidic channel. By injecting solutions with different refractive indices into the channel, the narrowband reflection peak and the corresponding distinct colors of a TiO2 metasurface can be precisely controlled. The transition time between color changes is as small as 16 ms—orders of magnitude faster than competing techniques and suitable for real-time display applications. Varying the lattice size of the TiO2 metasurfaces enables display of real-time tunable colors that span the entire visible range, and the injection and ejection of solvent in the channels allows erasure and restoration of information encoded in the TiO2 metasurfaces. Reference: S. Sun et al., ACS Nano online (Feb. 2018); doi:10.1021/acsnano.7b07121.
