PHOTODETECTORS: InP-based quantum-cascade detectors target the mid-IR

With wide-ranging potential applications in sensing, security, and defense, semiconductor-based mid-IR detector types include quantum-well IR photodetectors (QWIPs), photovoltaic QWIPs, mercury cadmium telluride detectors, and silicon microbolometers.

Aug 1st, 2006
Th 0608lfne06

With wide-ranging potential applications in sensing, security, and defense, semiconductor-based mid-IR detector types include quantum-well IR photodetectors (QWIPs), photovoltaic QWIPs, mercury cadmium telluride detectors, and silicon microbolometers. While each of these have unique advantages in terms of speed and signal-to-noise ratio as a function of operating temperature, scientists at the University of Neuchâtel (Neuchâtel, Switzerland) have developed two narrowband indium phosphide (InP)-based quantum-cascade detectors (QCDs) operating at 5.3 and 9 µm that profit from increased absorption efficiency due to the smaller effective mass in indium gallium arsenide/indium aluminum arsenide (InGaAs/InAlAs) compared to GaAs/AlGaAs quantum-well structures.1 (Under most conditions, electrons and holes in a crystal respond to electric and magnetic fields almost as if they were free particles in a vacuum, but with a different mass-the effective mass.)


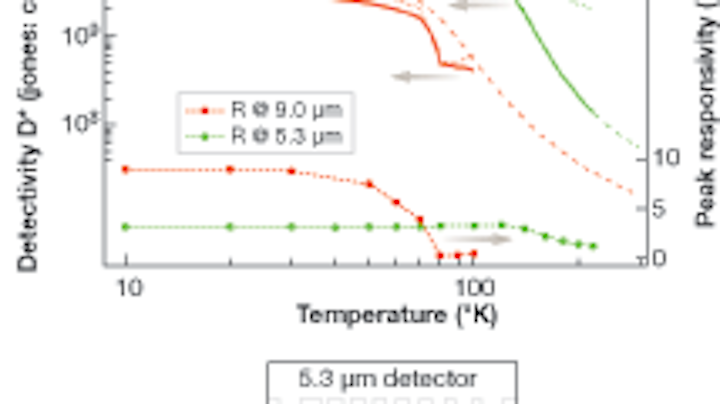

The conduction-band structure for a 5.3 µm quantum-cascade detector (inset) shows absorption of photons (black arrow) and the electron-extraction path (gray arrow). Peak responsivity as a function of temperature (lower part of graph, right axis) and detectivity due to Johnson noise as well as background photon-flux noise as a function of temperature (upper part of graph, left axis) is reported for a mid-IR 5.3 and 9 µm InP-based quantum-cascade detector (QCD). The drop in responsivity-which is supposed to be temperature-independent-may be due to thermal backfilling of the first step level (only 34 meV above the ground state) resulting in a smaller absorption from the ground state, phonon-scattering-induced shortening of the upper-state relaxation time, or smaller device resistance at elevated temperatures hampering unidirectional transport of electrons.
Click here to enlarge image

In addition to improved absorption efficiency, QCDs (like photovoltaic QWIPs) do not require a bias voltage for operation, meaning there is no dark-current noise and no integration-time limitation due to capacitance saturation in the readout circuit. Also, thanks to the lighter effective mass, the wells in a QCD can be grown somewhat wider than in a QWIP, causing less linewidth broadening due to interfacial roughness and a lower noise figure.

Quantum stair

The QCDs developed by the researchers are based on a vertical transition between two bound states in a silicon (Si)-doped quantum well, with an excited state that is coupled to the uppermost state of a chirped superlattice and forming a “quantum stair” that allows extraction of the electrons from the upper state to the ground state of the following period. In the 5.3 µm detector, for example, electrons are excited from the ground state to upper states called 8 and 9 (with transition energies of 230 and 237 meV, respectively). From these coupled states, they either jump back to the starting point or to state 7, where a series of transitions back to the ground state of the next period occurs (with subsequent transition energies of 34 meV for each state), resulting in fast vertical displacement of electrons.

Molecular-beam epitaxy (MBE) was used to grow these stair structures on an InP substrate. For the 5.3 and 9 µm devices, current-voltage (I-V) curves were derived at different temperatures. Unfortunately, their somewhat lower resistance at elevated device temperatures causes more Johnson noise, resulting in a reduced detectivity; this drawback will be corrected in future experiments by using slightly thicker barriers.

Fourier-transform infrared spectrometer (FTIR) measurements revealed the absorption and responsivity spectrum of the detectors. Peak responsivity values in the background-limited infrared photodetector regime of 3.2 and 9.0 mA/W with 4.3% and 7.1% relative linewidth were determined for the 5.3 and 9 µm detector, respectively (see figure).

In future work, the Neuchâtel research team plans to optimize the barrier thicknesses and dopant concentration of their quantum-cascade devices. Coupled with an enhanced optical diffraction grating to capture more light, performance improvements should be significant. “We hope that these detectors will reach performance levels which are sufficiently high to make them an interesting alternative to commercially available devices,” says project manager Daniel Hofstetter. “In order to fully profit from the rich physics and chemistry affiliated with this part of the electromagnetic spectrum, IR technology is still in need of reliable sources and detectors.”

Gail Overton

REFERENCE

1. M. Graf et al., Applied Phys. Lett. 88, 241118-1 (2006).
