OCT imaging technology uses computational imaging to boost resolution

Aug. 29, 2019
The method, called optical coherence refraction tomography, could improve medical images obtained in the OCT imaging industry for medical fields ranging from cardiology to oncology.

Biomedical engineers at Duke University (Durham, NC) have developed a method for increasing the resolution of optical coherence tomography (OCT) down to a single micrometer scale in all directions. The method, which they call optical coherence refraction tomography (OCRT), could improve medical images obtained in the OCT industry for medical fields ranging from cardiology to oncology.

OCT imaging has the limitation of depth resolution being several times better (typically) than the lateral resolution, says Joseph Izatt, the Michael J. Fitzpatrick Professor of Engineering at Duke University. "If the layers of imaged tissues happen to be horizontal, then they're well defined in the scan. But to extend the full power of OCT for live imaging of tissues throughout the body, a method for overcoming the tradeoff between lateral resolution and depth of imaging was needed."

In OCT imaging, a probe shoots a beam of light into a tissue and, based on the delays of the light waves as they bounce back, determines the boundaries of the features within. To get a full picture of these structures, the process is repeated at many horizontal positions over the surface of the tissue being scanned.

Because OCT provides much better resolution of depth than lateral direction, it works best when these features contain mostly flat layers. When objects within the tissue have irregular shapes, the features become blurred and the light refracts in different directions, reducing the image quality.

Previous attempts at creating OCT images with high lateral resolution have relied on holography, which involves measuring the complex electromagnetic field reflected back from the object. While this has been demonstrated, the approach requires the sample and imaging apparatus to remain perfectly still down to the nanometer scale during the entire measurement.

In the research team's paper that describes the work, Izatt and his doctoral student, Kevin Zhou, take a different approach. Rather than relying on holography, the researchers combine OCT images acquired from multiple angles to extend the depth resolution to the lateral dimension. Each individual OCT image, however, becomes distorted by the light’s refraction through irregularities in the cells and other tissue components. To compensate for these altered paths when compiling the final images, the researchers needed to accurately model how the light is bent as it passes through the sample.

Working with colleague Sina Farsiu, the Paul Ruffin Scarborough Associate Professor of Engineering at Duke University, Zhou developed a method using “gradient-based optimization” to infer the refractive index within the different areas of tissue based on the multi-angle images. This approach determines the direction in which the given property—in this case, the refractive index—needs to be adjusted to create a better image. After many iterations, the algorithm creates a map of the tissue’s refractive index that best compensates for the light’s distortions. The method was implemented using TensorFlow, a popular software library created by Google for deep learning applications.

“One of the many reasons why I find this work exciting is that we were able to borrow tools from the machine learning community and apply them not only to post-process OCT images, but also to combine them in a novel way and extract new information,” said Zhou. “I think there are many applications of these deep learning libraries such as TensorFlow and PyTorch, outside of the standard tasks such as image classification and segmentation.”

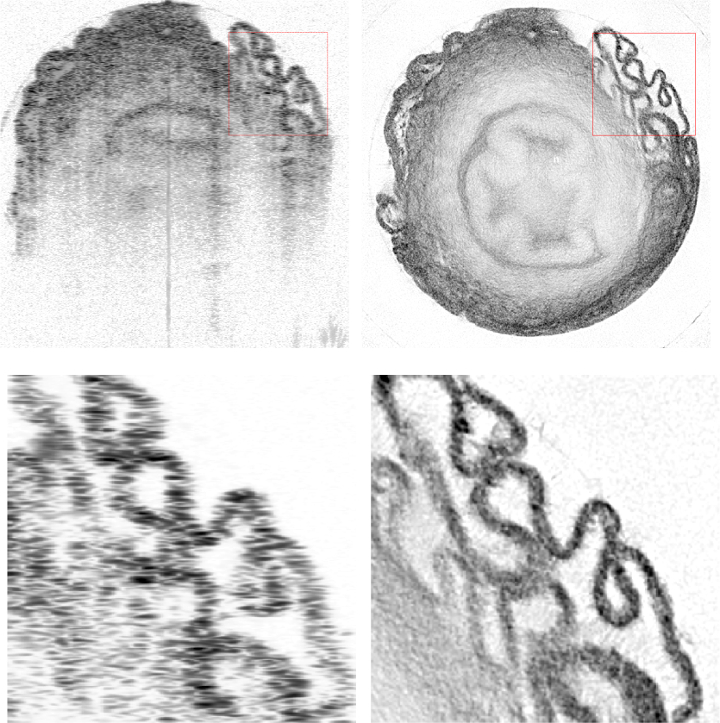

For these proof-of-concept experiments, Zhou took tissue samples such as the bladder or trachea of a mouse, placed them in a tube, and rotated the samples 360° beneath an OCT scanner. The algorithm created a map of each sample’s refractive index, increasing the lateral resolution of the scan by more than 300% while reducing the background noise in the final image. While the study used samples already removed from the body, the researchers believe OCRT can be adapted to work in a living organism.

“Rather than rotating the tissue, a scanning probe developed for this technique could rotate the angle of the beam on the tissue surface,” says Zhou.

Zhou is already investigating how much a corneal scan could be improved by the technology with less than a 180° sweep, and the results appear promising. If successful, the technique could be a boon to many medical imaging needs.

“Capturing high-resolution images of the conventional outflow tissues in the eye is a long-sought-after goal in ophthalmology,” says Farsiu, referring to the eye’s aqueous humor drainage system. “Having an OCT scanner with this type of lateral resolution would be very important for early diagnosis and finding new therapeutic targets for glaucoma.”

“OCT has already revolutionized ophthalmic diagnostics by advancing noninvasive microscopic imaging of the living human retina,” says Izatt. “We believe that with further advances such as OCRT, the high impact of this technology may be extended not only to additional ophthalmic diagnostics, but to imaging of pathologies in tissues accessible by endoscopes, catheters, and bronchoscopes throughout the body.”

Full details of the work appear in the journal Nature Photonics.
