Axsun data acquisition board for optical coherence tomography applications

Feb. 9, 2011

The AXSUN DAQ data acquisition board from Axsun Technologies has a 12 bit 500 MSPs front end configurable with either an external k-trigger or an internal trigger, and integrates with proprietary optical coherence tomography (OCT) swept sources.

LFW Staff

The AXSUN DAQ data acquisition board from Axsun Technologies (Billerica, MA) has a 12 bit 500 MSPs front end configurable with either an external k-trigger or an internal trigger, and integrates with proprietary optical coherence tomography (OCT) swept sources. A Base Camera Link (CL) interface transmits OCT spectral data to image processing electronics. OCT applications include ophthalmology, cancer diagnosis, and pulmonary and gastrointestinal imaging.

-----

PRESS RELEASE

Introducing the AXSUN 500MSPS DAQ Board

To meet the performance needs of next-generation Optical Coherence Tomography (OCT) systems, Axsun Technologies introduces a high speed 12-bit Data Acquisition board compatible with Axsun’s high performance swept laser OCT Engine products.

Product Description
The AXSUN DAQ board has a 12-bit 500 MSPs front end, configurable with either an external k-trigger, or an internal trigger, and a base Camera Link® (CL) interface to transmit OCT spectral data to your image processing electronics. The Axsun CL-DAQ card is designed to interface seamlessly with commercial CL Frame Grabbers and provide a straightforward Swept Source upgrade path to Camera based OCT systems.

Convenience and Small Form Factor

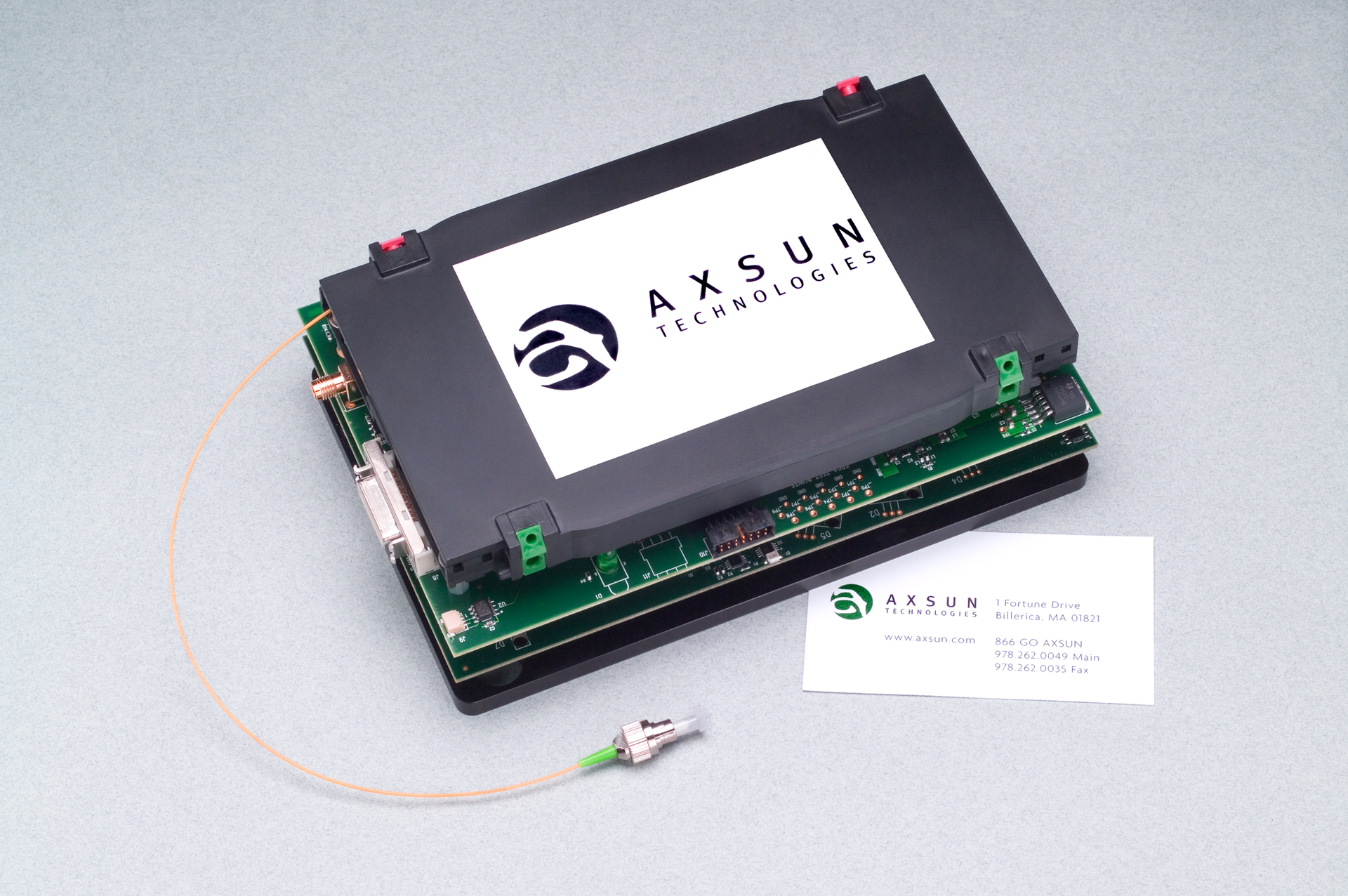

The Axsun high speed DAQ board resides in a compact (~114 x 177 x 13 mm) package and is straightforward to integrate with the Axsun Swept Source Engine. The single DC supply, and USB interface allow the user to begin collecting data in a matter of minutes.

Product Features & Benefits

1 channel 500MS/s
12-bit Resolution
Supports a wide range of laser sweep rates
200MHz Bandwidth (configurable)
Number of points per A Scan configurable
Configurable with external k-clock or internal 500MSPS clock
A-line trigger output via SMA connector
Base Camera Link® interface configuration
85MHz, 24 bit Pixel Data
USB interface

Applications

Optical Coherence Tomography for:
- Ophthalmology
- Gastrointestinal
- Cancer Diagnosis
- Pulmonary
- Industrial Imaging
- Research & Development

-----
