Near-IR silicon sensor has 20X higher detection efficiency

Tokyo and Fukuoka, Japan--Researchers at the University of Tokyo, Kyushu University, and NMEMS Technology Research Organization have unveiled their approach to improving the sensitivity of silicon (Si)-based near-IR sensors.

Near-IR silicon sensor has 20X higher detection efficiency
Near-IR silicon sensor has 20X higher detection efficiency

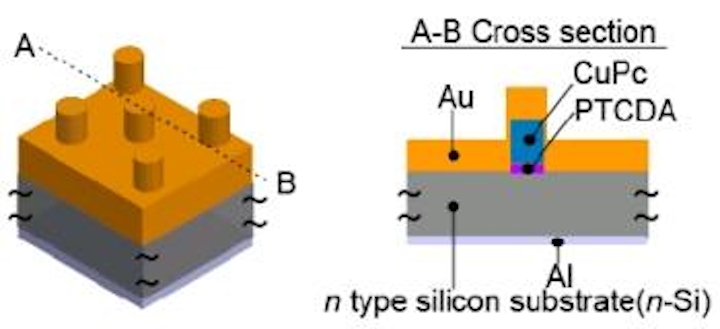

An organic semiconductor is formed using copper phthalocyanine (CuPC) and 3,4,9,10-perylenetetracarboxylic dianhydride (PTCDA). A portion of this research was funded by Japan's New Energy and Industrial Technology Development Organization (NEDO). (Image: University of Tokyo, Kyushu University, and NMEMS Technology Research Organization; source: Tech-On!)

Tokyo and Fukuoka, Japan--Researchers at the University of Tokyo, Kyushu University, and NMEMS Technology Research Organization have unveiled their approach to improving the sensitivity of silicon (Si)-based near-IR sensors.

The technology was developed by Isao Shimoyama, a professor at the University of Tokyo; Chihaya Adachi, a professor at Kyushu University; Yoshiharu Ajiki, an exchange researcher at NMEMS Technology Research Organization, and others. They made a device using Si rather than germanium (Ge), improving detection efficiency by adding 10 nm-scale metal nanostructures to Si to increase the electric current generated by collecting near-IR light.

The nanostructures were fabricated using the properties of organic materials rather than more-elaborate methods like photolithography. An organic semiconductor was self-assembled on Si and then a gold (Au) film was deposited on top.

Electric current was efficiently generated for light at a 1.2 μm wavelength. Though the nanostructures were not arranged in a periodic array, their detection efficiency for wavelengths near 1.2 μm was improved by a factor of about 20 over conventional Si detectors.

The announcement was made at IEEE MEMS 2014 (Jan 26 to 30, 2014; San Francisco, CA). The title of the lecture was "Near Infrared Photo-detector Using Self-assembled Formation of Organic Crystalline Nanopillar Arrays."

Source: http://techon.nikkeibp.co.jp/english/NEWS_EN/20140207/332920/
