PLASMONICS: Airy beam controls the flow of surface plasmon polaritons
Light can travel seemingly without diffraction in a curved arc in free space. Such peculiar optical beams are named “Airy beams” after English astronomer Sir George Biddell Airy, who studied the parabolic trajectory of light in a rainbow.
Light can travel seemingly without diffraction in a curved arc in free space. Such peculiar optical beams are named “Airy beams” after English astronomer Sir George Biddell Airy, who studied the parabolic trajectory of light in a rainbow. In 2007, Airy beams were first demonstrated in a laboratory setting by a research team at the University of Central Florida (Orlando, FL).1 One year later, researchers at the University of St. Andrews (Fife, Scotland) developed one of the first applications for these “Airy” beams: moving particles in a curved path for microfluidic engineering and cell-biology applications.
Recently, Airy beams were theoretically introduced into plasmonics for controlling the surface-plasmon polaritons (SPPs) along metal-dielectric interfaces.2 Now, researchers at the University of California–Berkeley, Lawrence Berkeley National Laboratory (LBNL), and San Francisco State University have experimentally realized such plasmonic Airy beams (PABs). More importantly, they have found a way to dynamically control the trajectories of these PABs in real time, offering a new approach to control the flow of SPPs over metallic surfaces for possible applications in reconfigurable optical interconnects and on-chip nanoparticle manipulations.3
Plasmonic Airy beams In order to manipulate SPPs—electromagnetic waves that propagate parallel to a metal/dielectric surface—for light-routing applications such as optical integrated circuits, permanent (and difficult-to-fabricate) nanostructures are required. But by directly coupling free-space Airy beams to SPPs on a metal surface through a grating coupler, the SPPs can be dynamically routed along parabolic trajectories without diffraction and any physical waveguide structures. The trajectories of such PABs can be changed in real time either through mechanical adjustment of the launch condition or through a computer-controlled spatial light modulator (SLM). The PABs make it possible to route light over metallic surfaces—even over rough structures or obstacles.
In the experimental setup, a one-dimensional Airy beam is created via a cubic phase mask by passing 820 nm laser light through an SLM followed by Fourier transformation through a 20X objective lens. The output strikes an 805-nm-period grating etched into a 50-nm-thick gold film on a quartz substrate. A half-wave plate ensures that the polarization of the beam is parallel to the grating vector. The excited PAB is monitored using the optical far-field method of leakage radiation microscopy. Transverse or longitudinal displacements of the objective lens or computer-based adjustment of the positions of the input beam and phase mask in the SLM are used to dynamically modulate the path of the PABs. These displacements can be used to manipulate the ballistic motion of the PAB, as well as the location of the peak intensity within the PAB arc (see figure).
“Apart from being the first experimental demonstration of PABs, our results enable a new way to dynamically route surface energies in real time without any fabricated permanent waveguiding structures, which may inspire researchers from different areas to develop new technologies or tools for a variety of applications,” says professor Xiang Zhang, director of the NSF Nanoscale Science and Engineering Center of UC Berkeley and a faculty scientist at LBNL, who led the research. Team member Peng Zhang adds, “Our method could improve the sensitivity of current plasmonic optical sensors and may be directly applied for exciting Airy surface waves in other low-dimensional systems, including graphenes and topological insulators.”
1. G.A. Siviloglou et al., Phys. Rev. Lett., 99, 213901 (2007).
2. A. Salandrino et al., Opt. Lett., 35, 2082 (2010).
3. P. Zhang et al., Opt. Lett., 36, 16, 3191–3193 (2011).

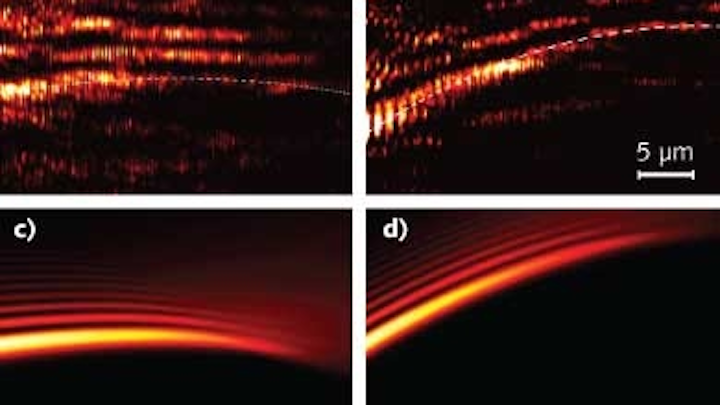

FIGURE. The trajectory of plasmonic Airy beams (PABs) can be manipulated by changing the angle of incidence of the light in the test setup. Experimental results show a PAB created with a 7º incident angle (a) and a 28º incident angle (b). The lower images are the corresponding numerical simulations (c) and (d), respectively. Scale bar is 5 μm. (Courtesy of the University of California–Berkeley)
