DLP projector-based smart headlights reduce glare for oncoming drivers

A smart headlight developed at Carnegie Mellon University enables drivers to take full advantage of their high beams without fear of blinding oncoming drivers or suffering from the glare that can occur when driving in snow or rain at night.

Sep 10th, 2014

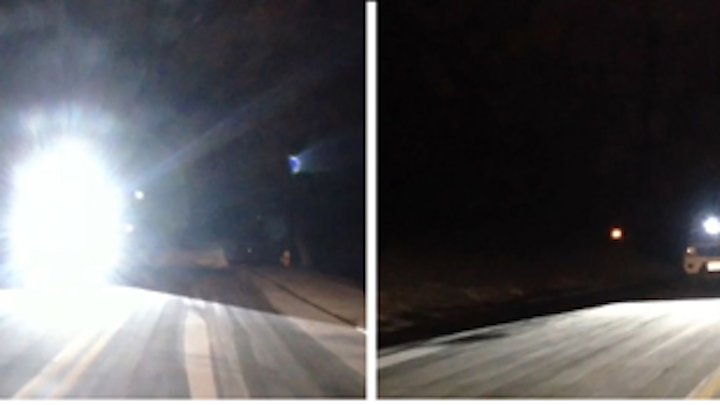

Smart headlights use a DLP-based projector to reduce glare for oncoming drivers. (Image credit: Carnegie Mellon University)
Smart headlights use a DLP-based projector to reduce glare for oncoming drivers. (Image credit: Carnegie Mellon University)

IMAGE: Smart headlights use a DLP-based projector to reduce glare for oncoming drivers. (Image credit: Carnegie Mellon University)

A smart headlight developed at Carnegie Mellon University (CMU; Pittsburgh, PA) in their Robotics Institute enables drivers to take full advantage of their high beams without fear of blinding oncoming drivers or suffering from the glare that can occur when driving in snow or rain at night. The headlights use a DLP (Digital Light Processing) projector instead of a standard headlight or cluster of LEDs (http://www.laserfocusworld.com/topics/light-emitting-diodes.htm). This enables the researchers to divide the light into a million tiny beams, each of which can be independently controlled by an onboard computer.

RELATED ARTICLE: Smart headlights from Carnegie Mellon University let drivers see through rain

The programmable headlight senses and tracks virtually any number of oncoming drivers, blacking out only the small parts of the headlight beam that would otherwise shine into their eyes. During snow or rain showers, the headlight improves driver vision by tracking individual flakes and drops in the immediate vicinity of the car and blocking the narrow slivers of headlight beam that would otherwise illuminate the precipitation and reflect back into the driver's eyes.

"Even after 130 years of headlight development, more than half of vehicle crashes and deaths occur at night, despite the fact there is much less traffic then," said Srinivasa Narasimhan, associate professor of robotics. "With our programmable system, however, we can actually make headlights that are even brighter than today's without causing distractions for other drivers on the road." More information, including a video, is available on the project website.

System latency--the time between detection by the camera and a corresponding adjustment in the illumination--is between 1 and 2.5 ms, Tamburo said. This near-instantaneous reaction means that in most cases the system doesn't have to employ sophisticated algorithms to predict where an oncoming driver or a flake of snow will be by the time the headlight system responds.

"Our system can keep high beams from blinding oncoming drivers when operating at normal highway speeds," Narasimhan said. Rain and snow present a more difficult problem, he noted; the system reduces glare at low speeds, but becomes less effective as speed increases.

In addition to preventing glare, the projector can be used to highlight the traffic lane--a helpful driving aid when roads have unmarked lanes or edges, or when snow obscures lane markings. When tied to a navigation system, the programmable headlights also can project arrows or other directional signals to visually guide drivers.

"We can do all this and more with the same headlight," Narasimhan said. That's in contrast to new headlight systems that some automakers are installing. These include multi-LED systems that reduce glare to oncoming drivers by darkening some LEDs as well as swiveling headlights that help drivers see down curved roads. "Most of these are one-off systems, however, with different headlights required for different specialized tasks," he added.

The research team assembled their experimental system from off-the-shelf parts and mounted the system atop the hood of a pickup truck, serving as the equivalent of a third headlight during street tests. The team plans to install a smaller version next year in the headlight slot of a truck.

The research was supported by Ford Motor Co., the Intel Science and Technology Center for Embedded Computing, the Office of Naval Research, and the National Science Foundation. It is part of the Technologies for Safe and Efficient Transportation Center, a U.S. Department of Transportation University Transportation Center at CMU.

SOURCE: Carnegie Mellon University; http://www.cmu.edu/news/stories/archives/2014/september/september9_smartheadlights.html
