Type II semiconductor superlattice photodetectors new alternative to HgCdTe

While mercury cadmium telluride photodiodes and quantum-well infrared photodetectors are well established in military and other applications, the performance of these detectors at long-wave infrared (LWIR) and very-long-wave infrared (VLWIR) wavelengths is limited due to difficulties in producing uniform material.

May 1st, 2008
Th 0805lfwnb1

While mercury cadmium telluride photodiodes and quantum-well infrared photodetectors are well established in military and other applications, the performance of these detectors at long-wave infrared (LWIR) and very-long-wave infrared (VLWIR) wavelengths is limited due to difficulties in producing uniform material. In an invited talk at SPIE’s Defense + Security Symposium March 17 (Orlando, FL), Manijeh Razeghi, professor of electrical engineering and computer science at Northwestern University (Evanston, IL), announced that Type II indium arsenide/gallium antimonide (InAs/GaSb) photodetectors may now be an important alternative to existing detectors at these wavelengths. Razeghi and her team fabricated Type-II InAs/GaSb superlattice photodiodes by growing multiple layers of Type II materials via molecular-beam epitaxy, enabling precise control of the cut-off wavelength from 3.7 to 32 mm.

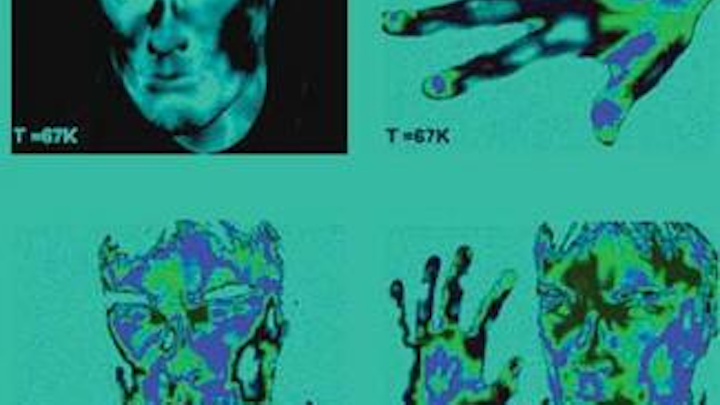

Click here to enlarge image

The group created photodiode arrays up to 400 mm2 in size with external quantum efficiency (QE) greater than 50% at a 9 mm wavelength. With optimized antireflective coatings, the single-pass QE could exceed 75%, says the group. The single-element detectors and arrays featured decreased dark current and increased sensitivity, and functioned as two-color detectors in LWIR with the differential resistance and QE of single-band devices. Contact Manijeh Razeghi at razeghi@eecs.northwestern.edu.
