Imec thin-film perovskite photovoltaic module approaches 12% efficiency
Imec announced an 11.9% active area conversion efficiency for its thin-film perovskite PV module.

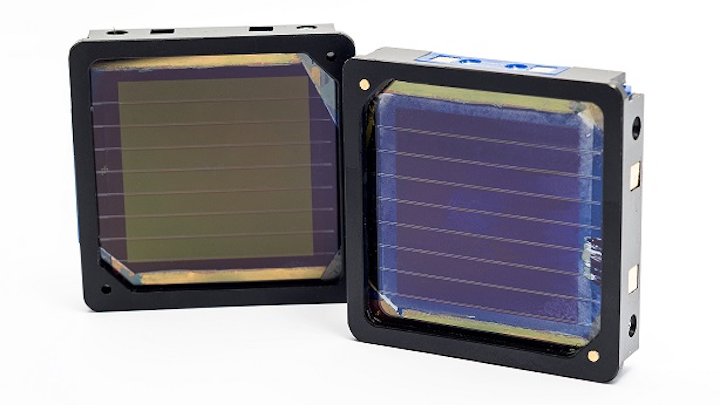

IMAGE: The imec perovskite photovoltaic module reaches more than 11% conversion efficiency. (Image credit: imec)
Imec (Leuven, Belgium) announced an 11.3% aperture and 11.9% active area optical-to-electrical power conversion efficiency for its thin-film perovskite photovoltaic (PV) module. The efficiency was measured over an aperture area of 16 cm2. Imec develops a platform for glass-based perovskite modules and collaborates with Solliance, a cross-border Dutch-German-Flemish thin-film PV research initiative.
RELATED ARTICLE: Make all of your photonics from perovskite?
Organometal halide perovskites are considered an excellent material for thin-film solar cells as they have shown high conversion efficiencies at the cell level. While the power conversion efficiency of this new class of thin film solar cells has increased rapidly in the last few years, further improvements are still needed to make thin-film photovoltaics an attractive technology for industrial production. Larger area processing and narrow interconnections are prerequisites for processing efficient thin-film modules.
Imec's perovskite module achieves a geometrical fill factor of more than 95% and an aperture conversion efficiency of 11.3%. The active area efficiency was demonstrated with 11.9%, approaching a 12% value. These record devices have been fabricated by the conventional lab-scale spin-coating process. Imec also used a linear coating technique (blade coating) for all the solution-based layers, to prove industrially viable fabrication methods. By using this method, the modules achieved a 9% aperture area efficiency. These achievements are important breakthroughs in bringing thin-film solar technology to industrial scalability for applications such as building-integrated photovoltaics (BIPV).
"Imec is steadily improving the conversion efficiencies of its perovskite solar cells and at the same time adjusting the fabrication processes to enable industrial adoption of this promising technology," said Tom Aernouts, R&D manager for thin-film photovoltaics at imec. "Leveraging our expertise in organic photovoltaics enables us to make rapid progress in enhancing the conversion efficiencies, ultimately aiming at conversion efficiencies of more than 20 percent for this type of thin-film solar cells."
Thanks to its high power conversion efficiency and stand-alone integration in building elements, both glass-based and thin-film perovskite PV technology are widely considered as important technologies for the BIPV market. Moreover, imec is exploring stacking a perovskite cell on top of a silicon solar cell to increase the conversion efficiency of silicon solar cells. The perovskite cell will capture the light which is not absorbed by silicon, as such enabling conversion efficiencies of more than 30%.
