Hyperspectral Imaging: Lightweight, simple, hyperspectral interferometer-bolometer detects gas species

Nov. 4, 2016

Researchers have developed an interferometer-based spectral imaging system that uses uncooled microbolometers.

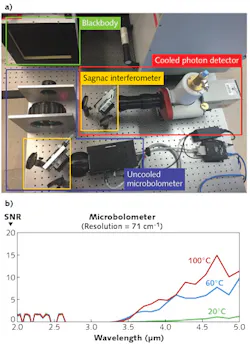

In the experimental setup (a) to analyze how the interferometer-bolometer compares to a standard cooled photon detector, the MIDAS instrument (outlined in blue) is positioned to look through the Sagnac interferometer (outlined in yellow) and lenses to a hot blackbody (outlined in green), while the cooled photon detector (outlined in red) also looks through the Sagnac interferometer. Signal-to-noise ratio (SNR) results are compared at different temperatures (b).

Whether quantifying the amount of carbon dioxide (CO₂), methane (CH₄), or other gas species in our atmosphere or in other planetary atmospheres, or measuring the energy of wildfires towards making global biomass predictions, infrared (IR) imaging and sensing is invaluable for many scientific disciplines. And while many atmospheric gases and ignition events have strong mid-IR signatures from 3 to 5 μm, there is significantly less light available for detection compared to long-wave IR (LWIR) signals from 8 to 14 μm—not to mention that mid-IR detection often requires bulky, power-hungry cooling equipment to boost signal-to-noise ratio (SNR).

Considering these disadvantages, and recognizing that light throughput is significantly better for interferometers compared to dispersive spectrometers, researchers at the University of Hawaii (Honolulu, HI) have developed an interferometer-based spectral imaging system that uses uncooled microbolometers rather than classic cooled photon-detecting arrays paired with a spectrometer.¹ This miniaturized IR detector of atmospheric species (MIDAS) is a low-power-consumption, lightweight hyperspectral imaging alternative to conventional spectroscopy.

The MIDAS touch

Basically, MIDAS consists of an uncooled microbolometer (37.5 μm pixel pitch, 30 Hz, 320 × 240, 2.5 W) married to a Sagnac interferometer (see figure). The beamsplitter and two mirrors of the interferometer break the input light into its individual frequencies and generate an interference pattern that is processed using standard Fourier-transform algorithms to derive a calibrated spectral trace for each element of the scene. The setup also includes an indium antimonide (InSb) cooled photon detector with 30 μm pixel pitch run at 30 Hz with a 320 × 256 array and 12 W output.

The researchers at the University of Hawaii have previously demonstrated that uncooled microbolometers coupled with a Sagnac interferometer can provide adequate SNR in the LWIR. The goal of MIDAS is to determine if this holds true in the MWIR by comparing MIDAS to the InSb cooled photon detector in the same Sagnac interferometer configuration.

Comparisons of SNR, noise-equivalent different temperature (NEdt), noise-equivalent spectral radiance, spectral response, and gas cells filled with known gas concentrations help determine whether the increased light-gathering ability of the interferometer will allow uncooled microbolometers to be used in the MWIR. Current SNR measurements indicate that MIDAS is best used for high-temperature targets. Further analysis is underway to determine if these measurements can be improved.

"Here at the University of Hawaii, we are working to precisely define the performance of uncooled microbolometers for spectroscopic detectors," says Casey I. Honniball, graduate research assistant. "We are looking at a variety of Earth and planetary science applications like gas detection from space using high-temperature target, including fires, gas flares, volcanoes, and lava flows on Earth as well as on other bodies in the solar system. Instruments like MIDAS are attractive candidates for IR imaging spectroscopy on small satellites due to their lightweight and low power requirements."

REFERENCE

1. C. I. Honniball et al., SPIE Newsroom online, doi:10.1117/2.1201607.006630 (Aug. 9, 2016); see http://bit.ly/2eJPWLx.
