CCD cameras from Princeton Instruments for quantitative spectroscopy

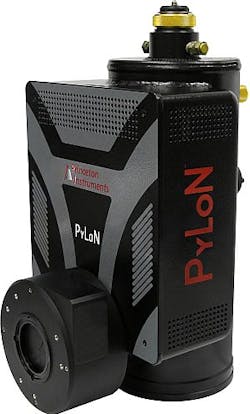

Princeton Instruments Pylon series CCD cameras

The Pylon series of controller-less, cryogenically cooled CCD cameras is designed for quantitative spectroscopy applications that require high sensitivity. The first two models are dual-amplifier cameras with either a 1340 × 100 pixel or 1340 × 400 pixel sensors. Liquid nitrogen cooling virtually eliminates dark current and indium metal seals increase vacuum longevity.
Princeton Instruments
Trenton, NJ

More Products



New Controllerless, Cryogenically Cooled CCD Cameras from Princeton Instruments Offer Scientists Exceptionally High Sensitivity for Quantitative Spectroscopy

Trenton, NJ — Princeton Instruments is pleased to introduce the PyLoN™ series, a brand new line of controllerless, cryogenically cooled CCD cameras designed for quantitative spectroscopy applications that demand the highest possible sensitivity. The first commercially available models in the new series are the PyLoN:100 and PyLoN:400, dual-amplifier cameras that utilize 1340x100 and 1340x400 sensors, respectively. Soon-to-be-introduced models include the dual-amplifier PyLoN: 2K and the single-amplifier PyLoN: 256.

In creating the new PyLoN platform, Princeton Instruments redesigned its industry-leading Spec-10 family of cameras to remove the external controller, increasing experimental flexibility while further improving the ultra-low-noise electronics. Liquid nitrogen cooling in the new cameras virtually eliminates dark current and indium metal seals enhance vacuum longevity. Binning noise has been further reduced from the already low levels in PI’s Spec-10 platform.

“Both new PyLoN cameras provide dual amplifiers and software-selectable gains that permit operation either in high-sensitivity mode, which is ideal for applications such as Raman or single-molecule spectroscopy, or in high-capacity mode, which is well suited to applications like fluorescence spectroscopy,” notes Ed Gooding, Ph.D., spectroscopy product manager at Princeton Instruments. “Additionally, the 2 mm array height of the PyLoN:100 facilitates rapid spectral acquisition, whereas the 8 mm array height of the PyLoN:400 is perfect for multiplexed spectroscopy.”

The CCDs utilized in the PyLoN:100 and PyLoN:400 cameras each feature 20x20 μm pixels, offering researchers an optimal combination of high resolution and wide dynamic range. Select PyLoN cameras also feature Princeton Instruments’ exclusive eXcelon™ technology, which delivers the highest available sensitivity in the UV and NIR while suppressing the etaloning that occurs in standard back-illuminated CCDs.

The PyLoN platform delivers analog-to-digital conversion (ADC) rates of up to 4 MHz, with digital bias stabilization and correlated double sampling for decreased read noise and improved linearity. Kinetics mode allows microsecond-resolved kinetic spectral acquisition; custom sensor mode increases control over the camera readout, enabling spectral rates in excess of 1000 frames per second.

PyLoN cameras operate on 32-bit and 64-bit Microsoft® Windows® operating systems and are fully supported by LightField™, Princeton Instruments’ advanced 64-bit data acquisition software featuring patent-pending IntelliCal™ wavelength and intensity calibration packages. The latest Gigabit Ethernet (GigE) interface allows remote camera operation via a single cable without the need for custom frame grabbers. PyLoN cameras are available with or without a 40 mm shutter.

For more information, please visit
